FORTE

CLEARLY TOUGH & SECURE



Security Rating:   MAXIMUM

CLEAR, see-through security
TOUGH; virtually impossible to penetrate or climb
SECURE enough for the highest levels of protection


LEED Certified    |    Non-Toxic Powder Coating    |    25-Year Limited Warranty    |    8 Colors



Go ahead. Compare Forte with other high-security fencing. You’ll find Forte delivers on every point.

When you need it strong, virtually impenetrable, made to last and competitively priced, choose Forte’s steel flat or v-braced panels, with optional cross bars and reinforcing brackets for maximum security, including multi-level and slope installations.

Forte

Clearly Secure

Forte delivers maximum security with a clear view, making it ideal for securing everything from critical assets to industrial complexes and storage facilities. Steel-strong construction and design make Forte almost impossible to climb, cut or penetrate, giving would-be intruders every reason to go elsewhere.

Say goodbye to chain link and other types of fencing and barriers. Count on Forte’s maintenance-free, high-security perimeter fortification to deliver the highest level of see-through security.

Forte Security Solutions


Critical Infrastructure

Solar Farms; Data Centers; Water, Electrical & Gas Utilities

Chemical & Industrial Plants
Military Bases
Federal, State & Municipal Buildings

Transportation

Airports, Railways

Correctional Facilities
Embassies
Storage Facilities
Places of Worship
Warehouses
Distribution Facilities

CLEARLY DIFFERENT.

STEEL FENCING

Superior strength for the toughest challenges

DURABLE POWDER-COATING

Long-term, care-free maintenance

EIGHT (8) STANDARD COLORS
SUPERIOR ANTI-CLIMB / CUT / PENETRATION FEATURES
ADAPTABLE TO VARYING LEVELS AND SLOPES
CHILD/PET-SAFE
GATES BUILT TO SPEC
CAPACITY TO MEET AGGRESSIVE DELIVERY SCHEDULES

Anywhere in the US and Canada

CLEARLY BETTER.

25-YEAR LIMITED WARRANTY

All products & components

LEED CERTIFIED

MR 4.1 and MR 4.2 credits

100% NON-TOXIC POWDER-COATED FINISH

ECO-FRIENDLY
Recycled and recyclable
100% free of volatile organic compounds
100% free of Triglycidyl Isocyanurate

TEST-APPROVED
Miami-Dade County Approved – HVHZ (High Velocity,
Hurricane Zone)
Accelerated UV Weather Test G154-04
Corrosion Resistance – 1,000 hours of exposure
COMPLIES WITH ASTM-510

View the FORTE
FEATURES & BENEFITS VIDEO

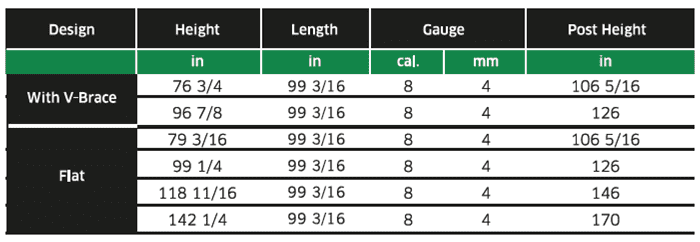

FORTE Panels & Posts



FORTE Panel Options

Pannel


Post

Posts are available in multiple sizes and lengths.

Available with angled extension.

Please consult one of our Distributors for additional details.

FORTE Installation Components

Universal Bracket

Post

Clamp

45° Angled Extension

Steel Brackets attach to posts using a #14 x 1 ½” self-tapping screw (Stainless Steel is recommended). This allows the brackets to be installed anywhere on the Post. Forte Panels may also be used with Classic Posts. This is especially useful if the project has any uneven grade. Post foundation varies according to building codes.

FORTE Composition

25-year limited warranty on all components | Meets ASTM-510


FORTE Colors /RAL Codes

FORTE File Downloads



Documentation & Video



Forte Installation Video


FORTE Drawings & Specifications


V-braced Panels

PANEL
DWG FILE
PDF FILE
SPECIFICATIONS
76"
98"

Flat Panels

PANEL
DWG FILE
PDF FILE
SPECIFICATIONS
79"
99"
118"
142"

Designmaster Fence Components Meet or Exceed the Requirements and Tolerances of Applicable ASTM’s, including, but not limited to, the following:

  • ASTM A1064 - Specification for Carbon-Steel Wire
  • ASTM A641 - Specification for Zinc–Coated (Galvanized) Carbon Steel Wire
  • ASTM A653 - Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
  • ASTM B117 - Standard Practice for Operating Salt Spray (Fog) Apparatus
  • ASTM D522 - Standard Test Methods for Mandrel Bend Test of Attached Organic Coatings
  • ASTM D1654 - Standard Test Method for Evaluation of Painted or Coated Specimens Subjected to Corrosive Environments
  • ASTM D2244 - Standard Practice for Calculation of Color Tolerances and Color Differences from Instrumentally Measured Color Coordinates
  • ASTM D2794 - Standard Test Method for Resistance of Organic Coatings to the Effects of Rapid Deformation (Impact)
  • ASTM D3359 - Standard Test Methods for Rating Adhesion by Tape Test
  • ASTM F2919 - Standard Specification for Welded Wire Mesh Fence Fabric (Metallic-Coated or Polymer Coated) with Variable Mesh Patterns or Meshes greater than 6 in.

NOTE: Before installing any fence, please consult the local building codes and follow all safety requirements
