CONTEMPO

CLEARLY & SIMPLY BUILT STRONG



Security Rating:   HIGH

CLEAR, see-through security
SIMPLE, contemporary design
BUILT STRONG for high-security applications


LEED Certified    |    Non-Toxic Powder Coating    |    25-Year Limited Warranty    |    8 Colors



Difficult to climb or penetrate, made to last and competitively priced, Contempo’s 4-gauge vertical and double-1-gauge horizontal steel make this fence an exceptional security solution for even the highest levels of security, including multi-level and slope installations.

As beautiful as it is strong, Contempo is at home anywhere, providing the perfect combination of strength and aesthetics.

Contempo

Beautifully Secure

As attractive as it is strong, Contempo’s clean lines make it ideal for everything from military applications and businesses to schools, parks and communities.

4-gauge vertical and double-1-gauge horizontal steel wire give Contempo its strength, and its straight, tight-patterned design makes it almost impossible to climb, cut or penetrate. Contempo is clearly the ideal solution for projects requiring contemporary styling and brute strength.

Contempo Security Solutions

Military Bases
Federal, State & Municipal Buildings
Transportation
Correctional Facilities
Schools & Universities
Daycare Centers
Hotels & Apartment Complexes
Amusement Parks
Sports Complexes
Parks, Playgrounds & Pools
Public Works
Businesses & Corporations
Communities
Places of Worship
Warehouses
Distribution Facilities


CLEARLY DIFFERENT.

STEEL FENCING

Superior strength for the toughest challenges

DURABLE POWDER-COATING

Long-term, care-free maintenance

EIGHT (8) STANDARD COLORS
SUPERIOR ANTI-CLIMB / CUT / PENETRATION FEATURES
ADAPTABLE TO VARYING LEVELS AND SLOPES
CHILD/PET-SAFE
GATES BUILT TO SPEC
CAPACITY TO MEET AGGRESSIVE DELIVERY SCHEDULES

Anywhere in the US and Canada

CLEARLY BETTER.

25-YEAR LIMITED WARRANTY

All products & components

LEED CERTIFIED

MR 4.1 and MR 4.2 credits

100% NON-TOXIC POWDER-COATED FINISH

ECO-FRIENDLY
Recycled and recyclable
100% free of volatile organic compounds
100% free of Triglycidyl Isocyanurate

TEST-APPROVED
Miami-Dade County Approved – HVHZ (High Velocity,
Hurricane Zone)
Accelerated UV Weather Test G154-04
Corrosion Resistance – 1,000 hours of exposure
COMPLIES WITH ASTM-510

View the CONTEMPO
FEATURES & BENEFITS VIDEO

CONTEMPO Panels & Posts


CONTEMPO Panel Options

Panel

Post

Posts are available in multiple sizes and lengths.

Available with angled extension.

Please consult one of our Distributors for additional details.

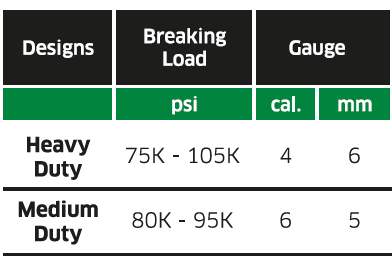

Vertical Wire

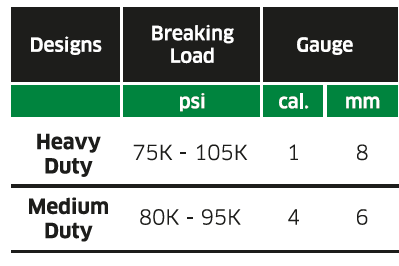

Double Horizontal Wire


CONTEMPO Installation Components

Standard Bracket

Universal Bracket

Post

Clamp

45° Angled Extension

Steel Brackets attach to posts using a #14 x 1 ½” self-tapping screw (Stainless Steel is recommended; obtain locally). This allows the brackets (hardware included) to be installed anywhere on the Post. 3” x 3” 11-gauge posts are always preferred for all panels. At your discretion, smaller size posts may be used for panels 5’ and under. However, it is strongly recommended to ONLY use 3” x 3” 11-gauge posts (at a minimum) for installations with panels taller than 5’. Please consult an engineer, architect or other expert to ensure you are using the correct size post. And, always check your local building codes.

CONTEMPO Composition

25-year limited warranty on all components | Meets ASTM-510


CONTEMPO Colors / RAL Codes


CONTEMPO File Downloads



Documentation & Video



Contempo Installation Video


CONTEMPO Drawings & Specifications


PANELDWG FILEPDF FILESPECIFICATIONS
48"
72"
96"


Designmaster Fence Components Meet or Exceed the Requirements and Tolerances of Applicable ASTM’s, including, but not limited to, the following:

  • ASTM A1064 - Specification for Carbon-Steel Wire
  • ASTM A641 - Specification for Zinc–Coated (Galvanized) Carbon Steel Wire
  • ASTM A653 - Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
  • ASTM B117 - Standard Practice for Operating Salt Spray (Fog) Apparatus
  • ASTM D522 - Standard Test Methods for Mandrel Bend Test of Attached Organic Coatings
  • ASTM D1654 - Standard Test Method for Evaluation of Painted or Coated Specimens Subjected to Corrosive Environments
  • ASTM D2244 - Standard Practice for Calculation of Color Tolerances and Color Differences from Instrumentally Measured Color Coordinates
  • ASTM D2794 - Standard Test Method for Resistance of Organic Coatings to the Effects of Rapid Deformation (Impact)
  • ASTM D3359 - Standard Test Methods for Rating Adhesion by Tape Test
  • ASTM F2919 - Standard Specification for Welded Wire Mesh Fence Fabric (Metallic-Coated or Polymer Coated) with Variable Mesh Patterns or Meshes greater than 6 in.

NOTE: Before installing any fence, please consult the local building codes and follow all safety requirements
