Classic

CLEARLY BUILT FOR TIMELESS BEAUTY & STRENGTH

When beauty factors into perimeter security, Classic’s stately elegance is an
incomparable choice.

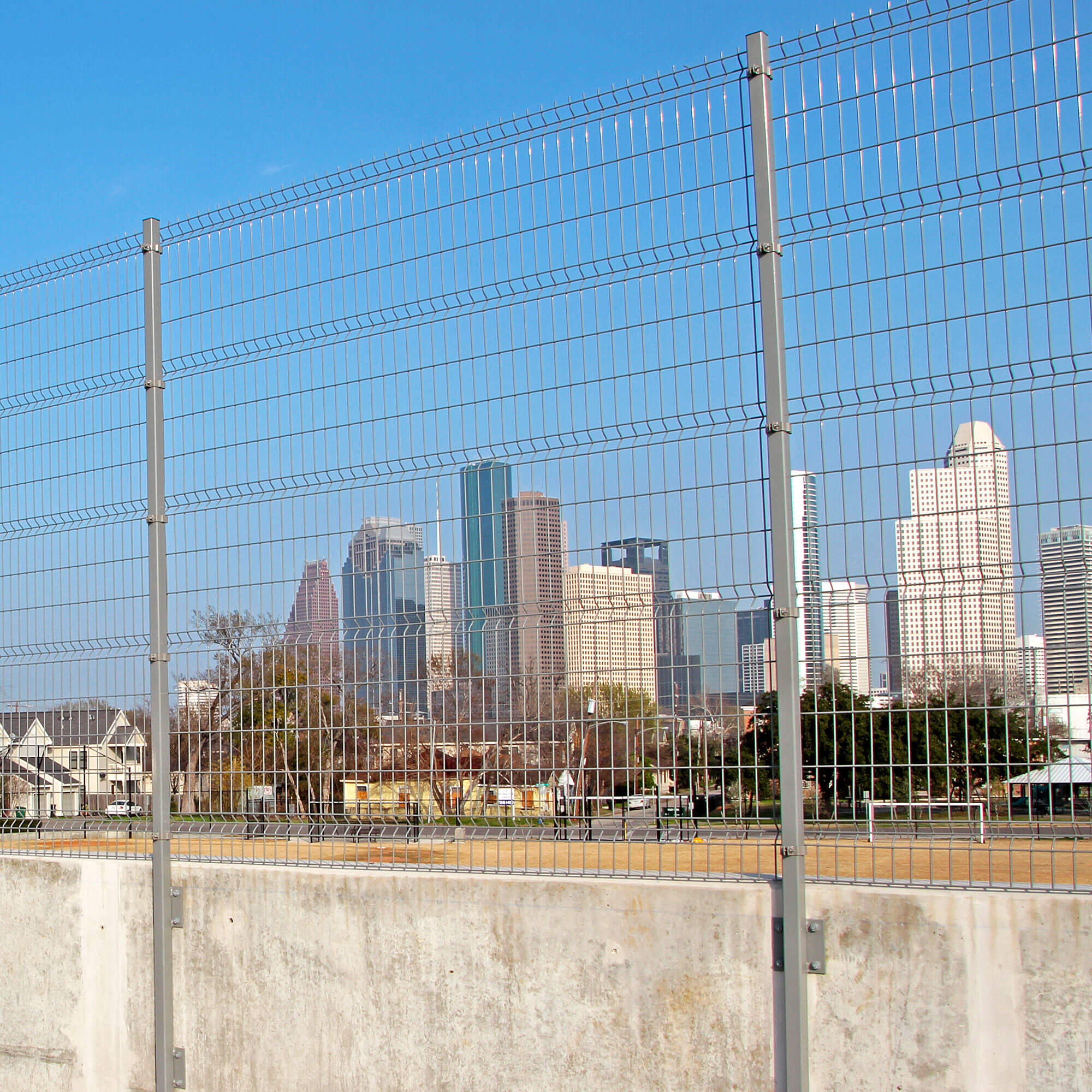

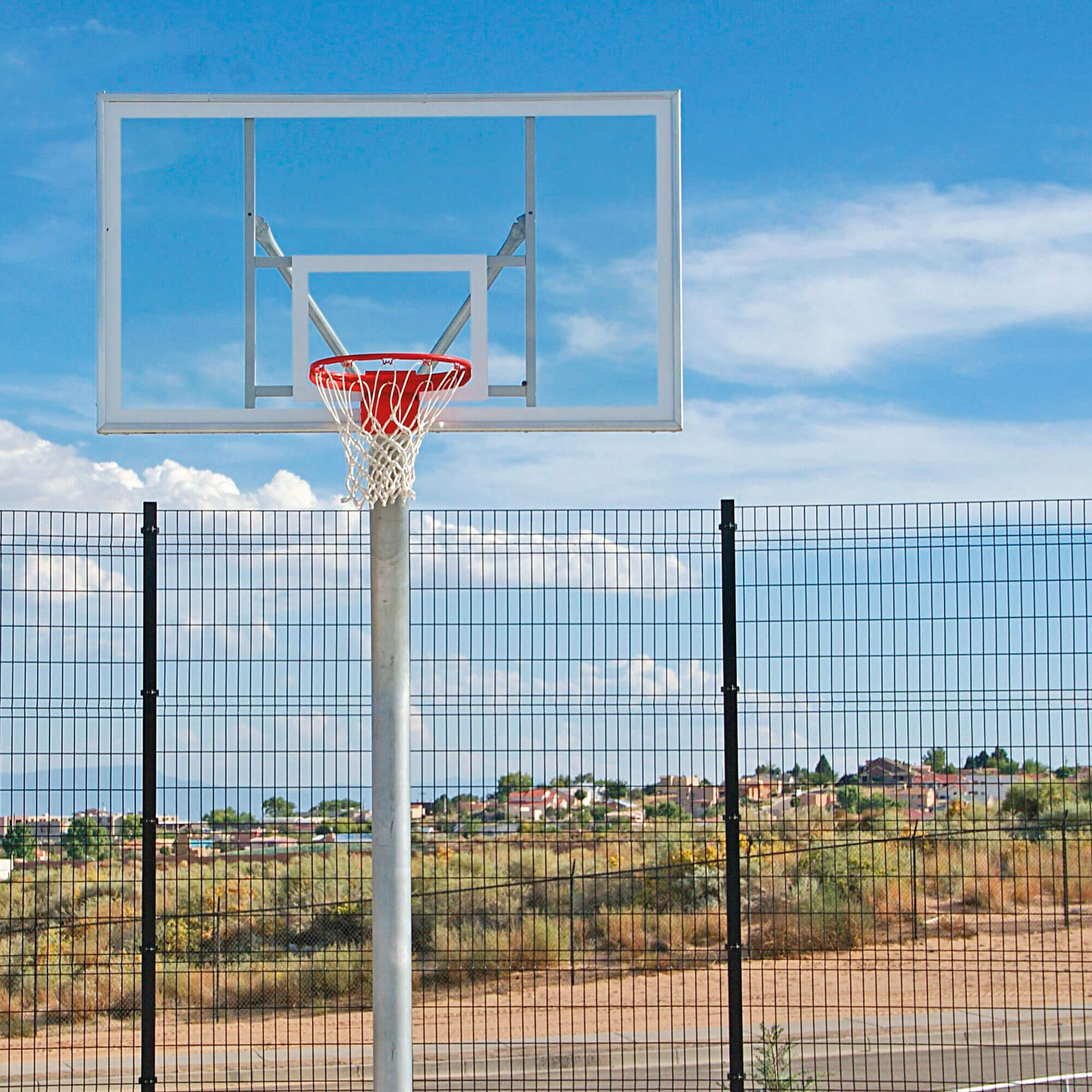

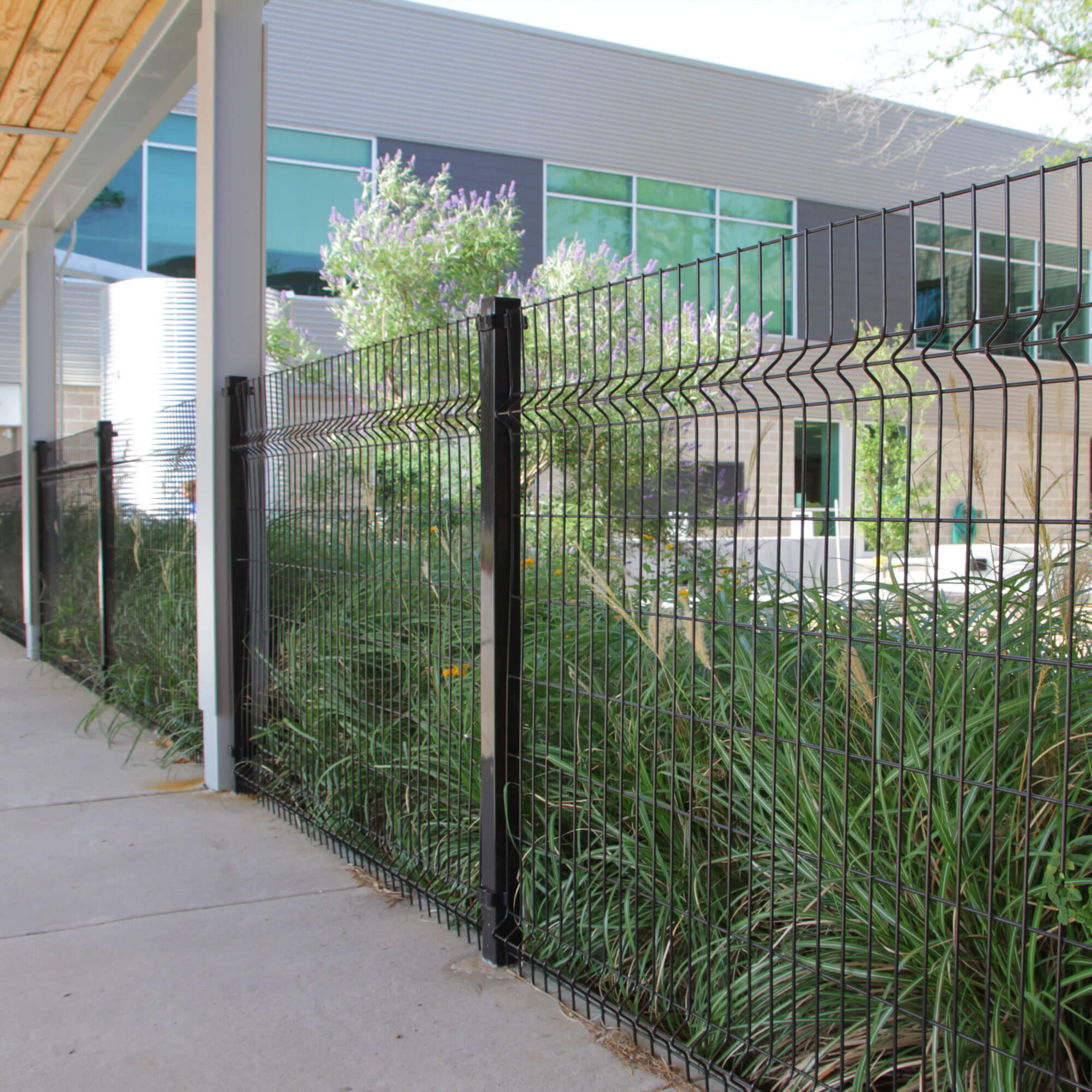

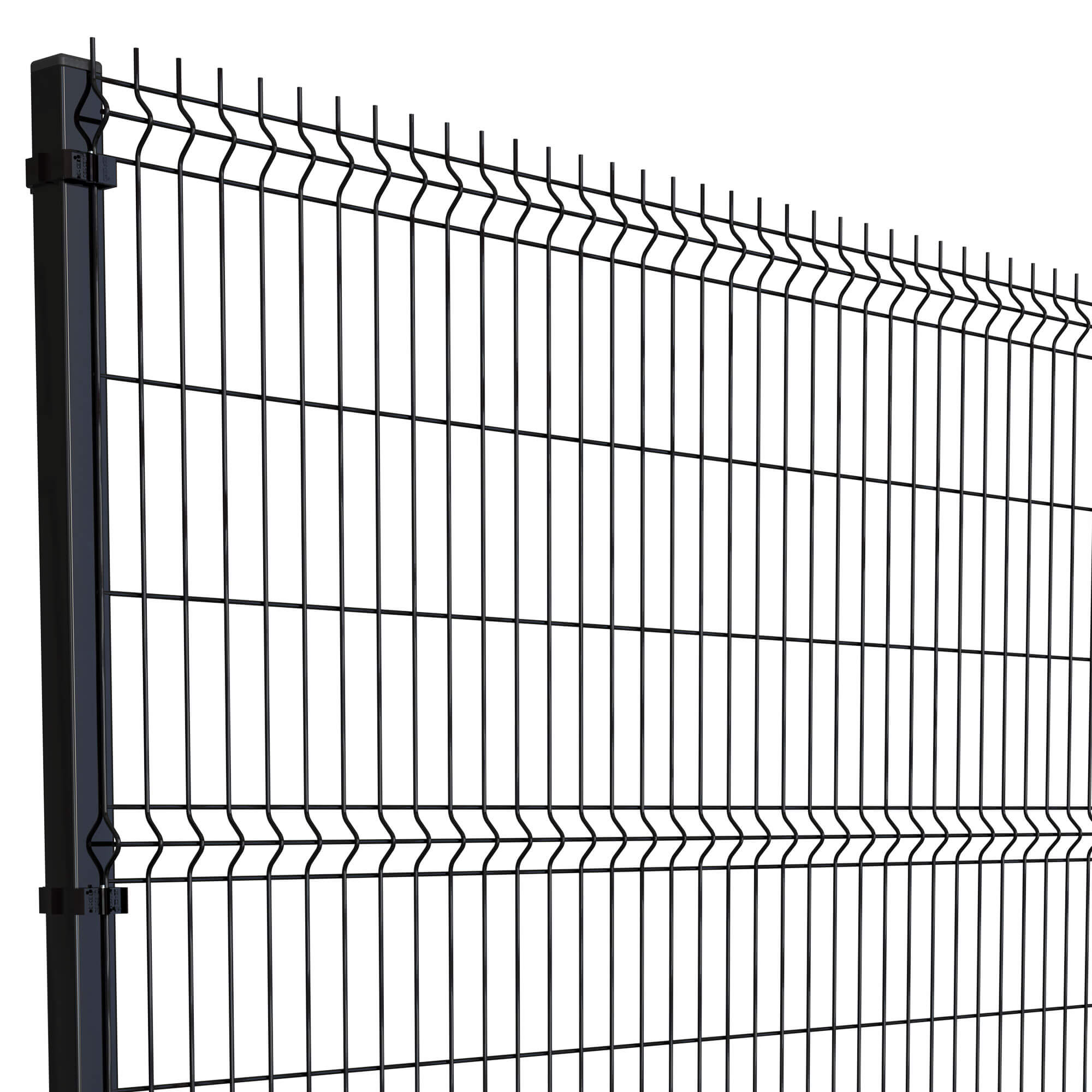

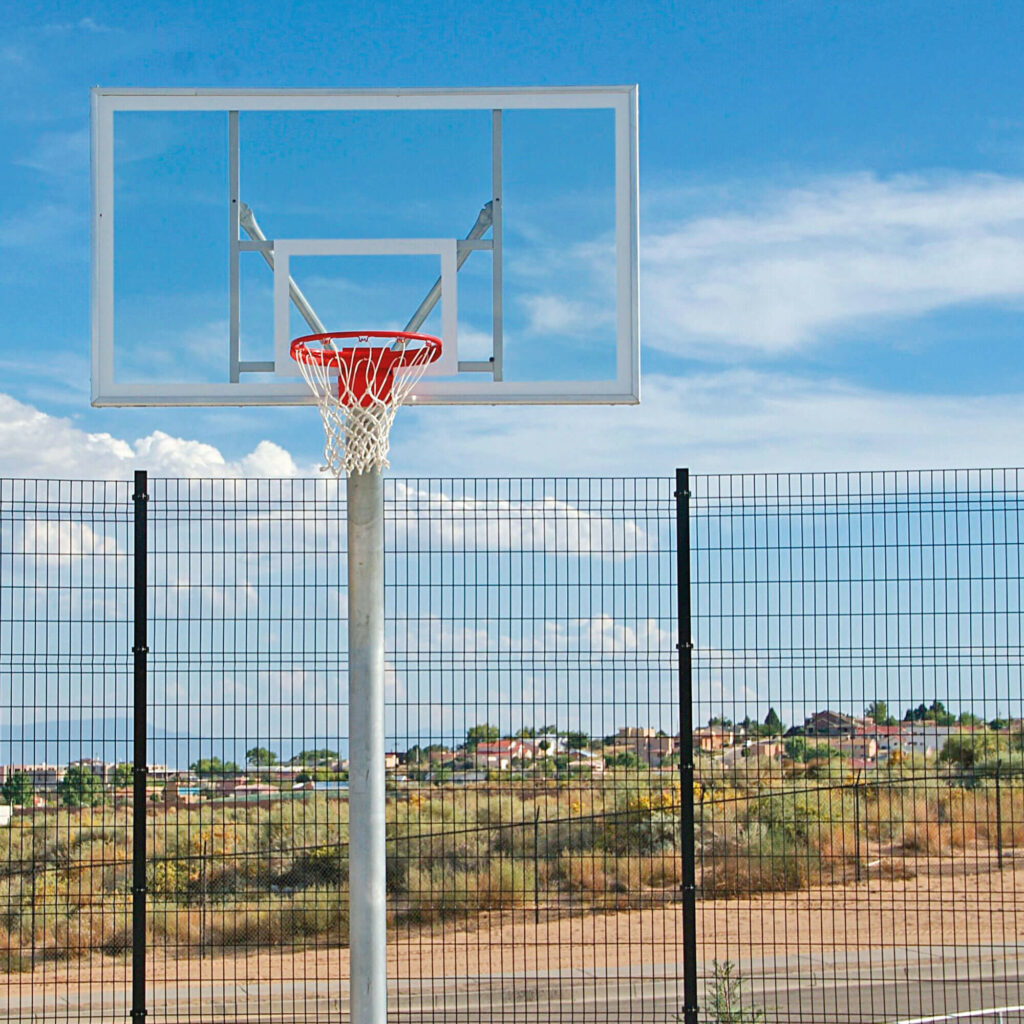

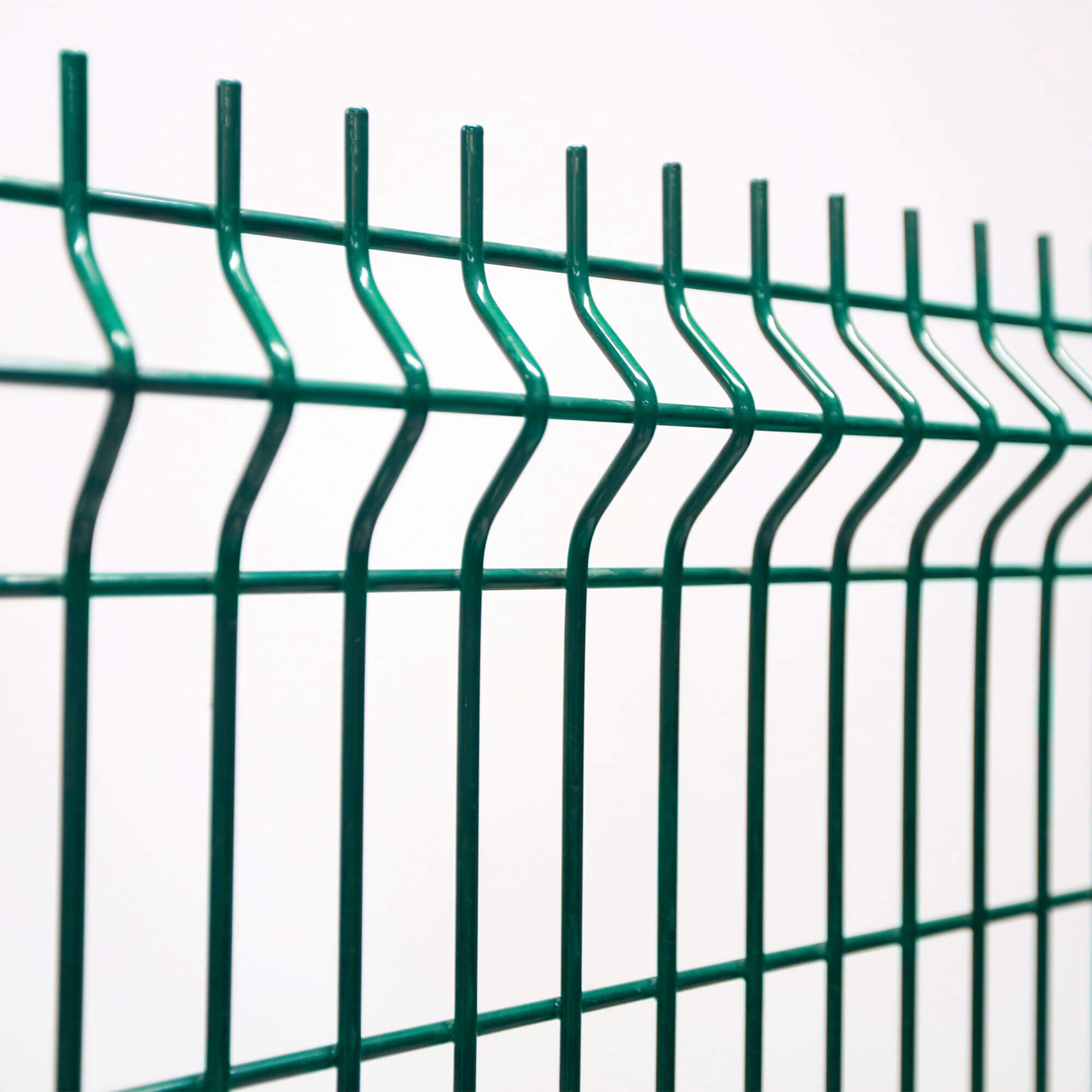

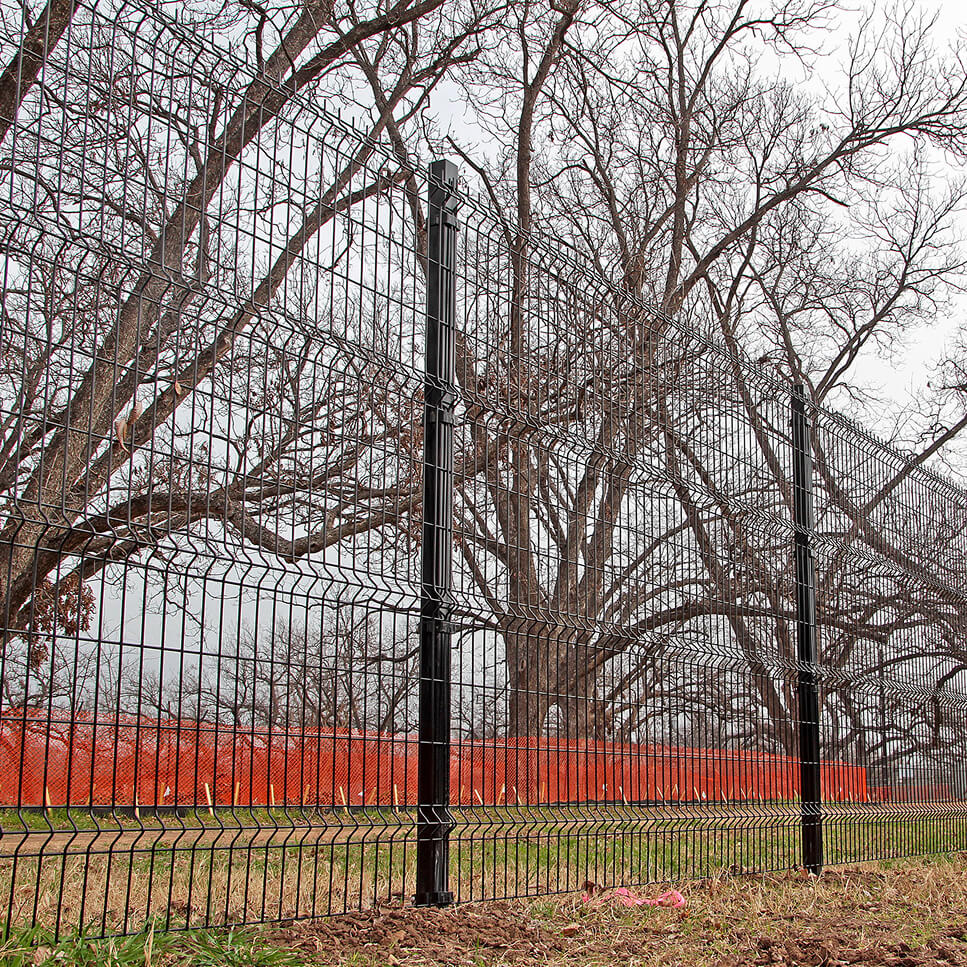

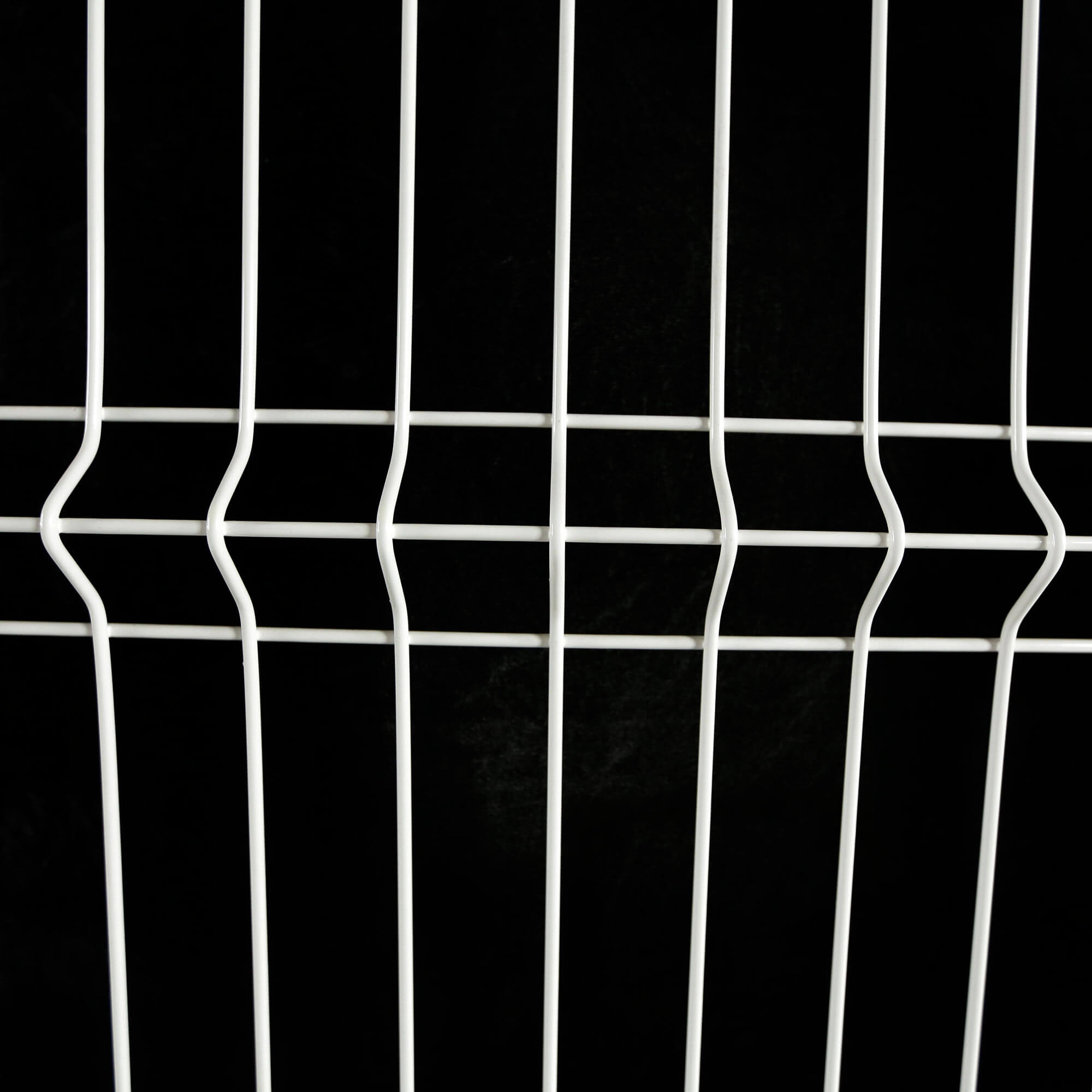

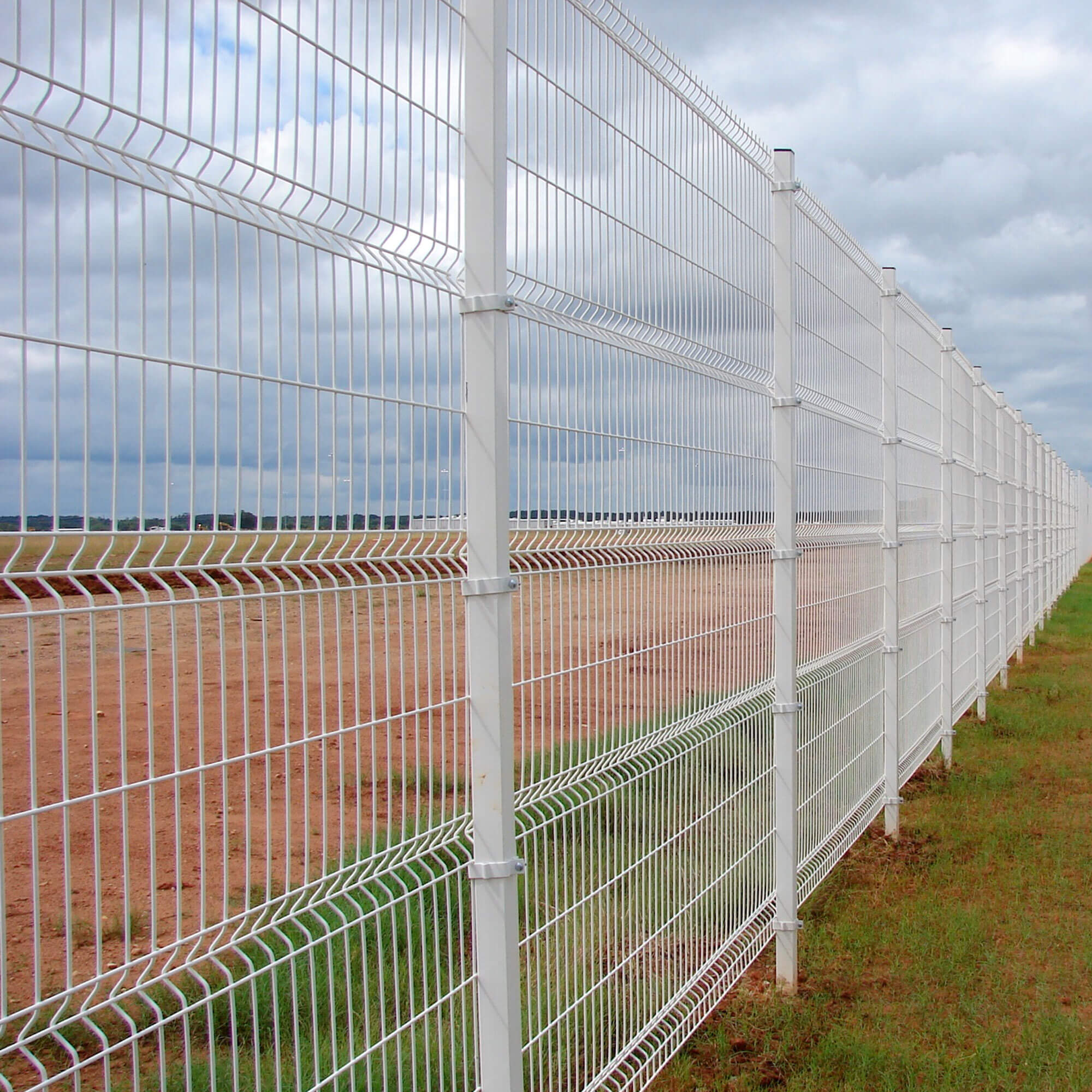

Difficult to climb or penetrate, made to last, and incredibly attractive, Classic’s V-shaped braces along the length of each steel panel add lateral strength, and its adaptability to elevation and directional changes (120° swing) make this fence ideal for nearly any application.

AVAILABLE IN:

SPECS & DOWNLOADS | BROCHURE

❱ INSTALLATION VIDEO

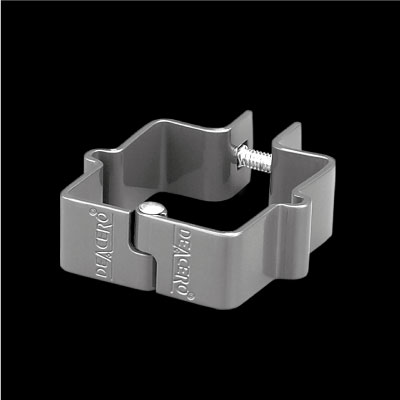

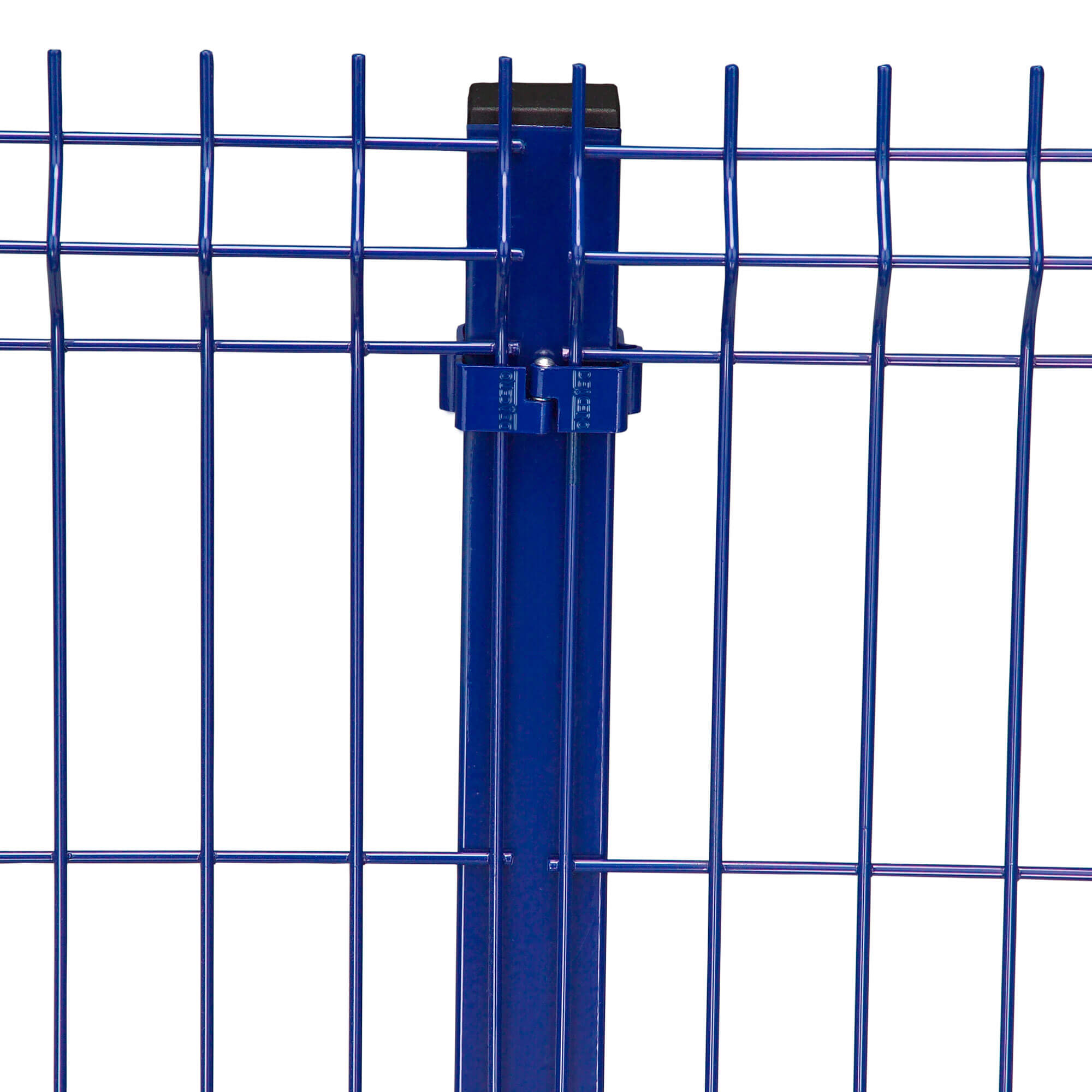

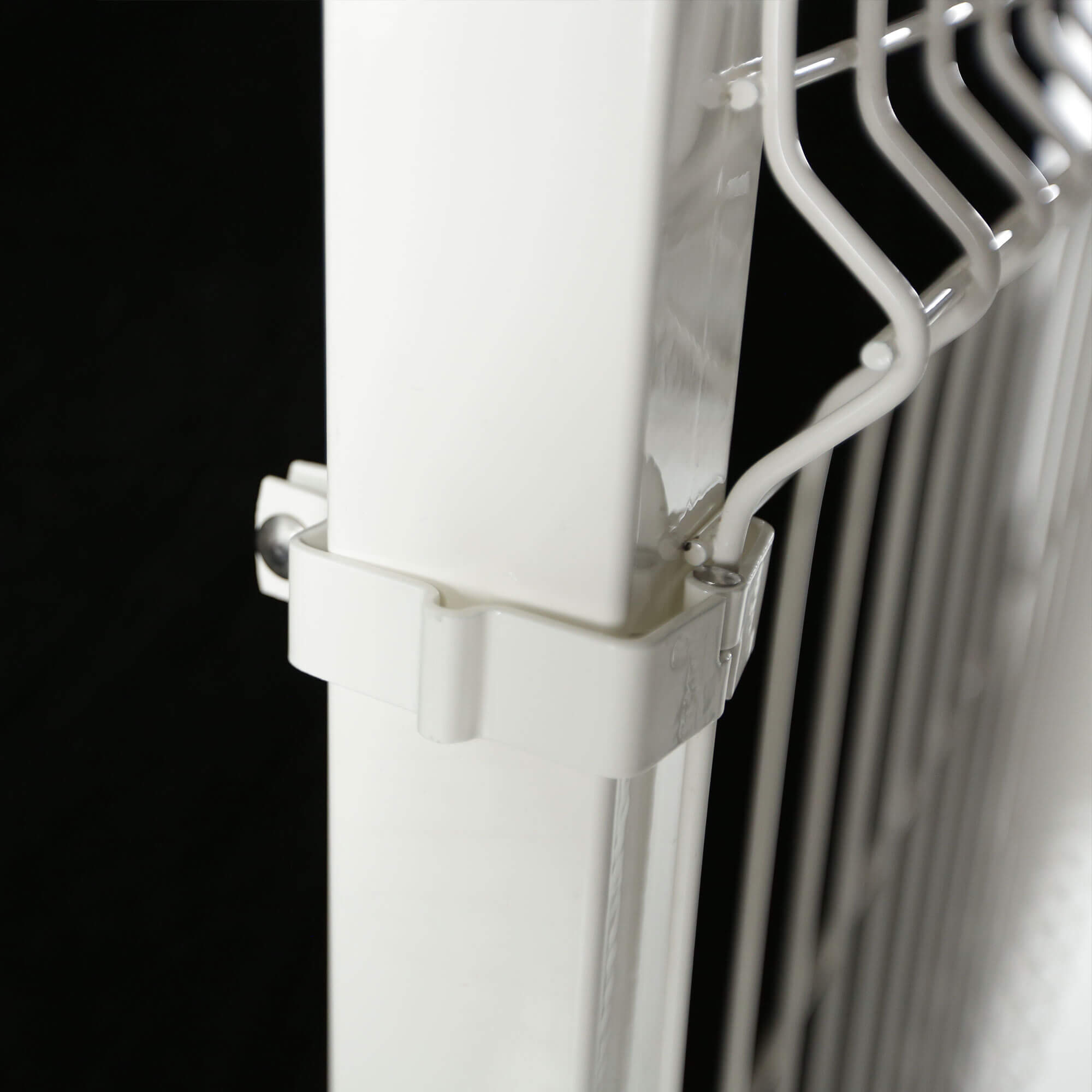

STANDARD BRACKET

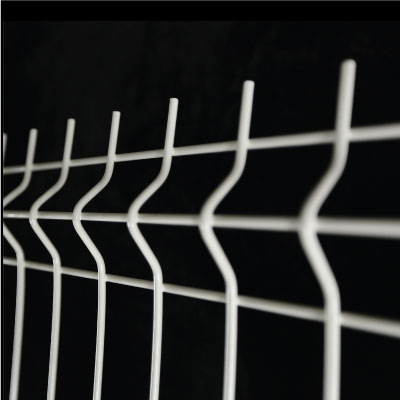

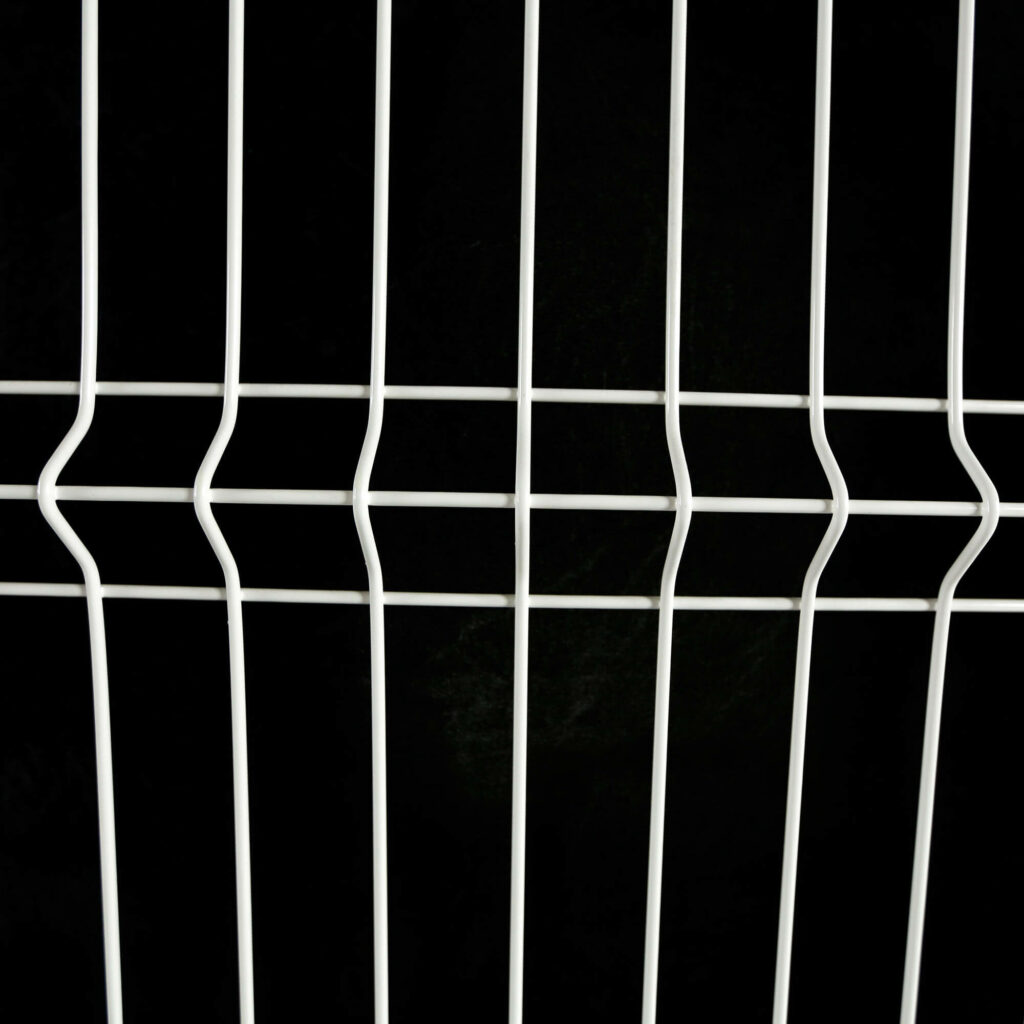

PANEL

POST

45° ANGLED EXTENSION*

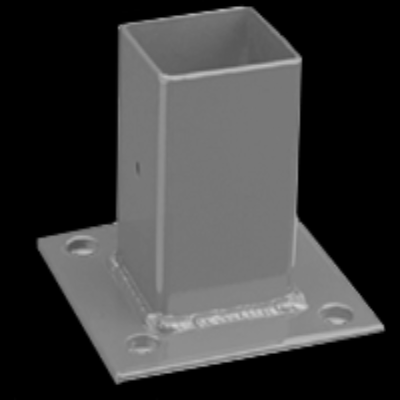

Steel Base

* Optional component.
Black post cap included. Posts are available in multiple sizes and lengths. V, T or 45° angled extensions are available welded to posts or add-on. Wire dimensions are center to center.

SPECS, DOWNLOADS AND CERTIFICATIONS

Height	Length	Opening	Steel Bracket	Gauge	Wire Breaking Load
25 3/8"	95 1/4”	2X6”	2	6	80,000 - 110,000 PSI
43 4/4”	95 1/4”	2X6"	2	6	80,000 - 110,000 PSI
62 3/16”	95 1/4”	2X6”	3	6	80,000 - 110,000 PSI
73 1/4”	95 1/4”	2X6”	4	6	80,000 - 110,000 PSI
98 1/6”	95 1/4”	2X6”	5	6	80,000 - 110,000 PSI

DRAWINGS

MAINTENANCE GUIDE

WARRANTY

Certifications

Designmaster Fence components meet or exceed the requirements and tolerances of applicable ASTM standards to ensure industry compliance. Click through to learn more about each certification.

Specification for Carbon-Steel Wire

Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process

Standard Practice for Operating Salt Spray (Fog) Apparatus

Standard Test Methods for Mandrel Bend Test of Attached Organic Coatings

Standard Test Method for Evaluation of Painted or Coated Specimens Subjected to Corrosive Environments

Tab Content

This is a basic text element.

Standard Practice for Calculation of Color Tolerances and Color Differences from Instrumentally Measured Color Coordinates

Standard Test Method for Resistance of Organic Coatings to the Effects of Rapid Deformation (Impact)

Standard Test Methods for Rating Adhesion by Tape Test

Standard Specification for Welded Wire Mesh Fence Fabric (Metallic-Coated or Polymer Coated) with Variable Mesh Patterns or Meshes greater than 6 in.

Exposure to ultraviolet light for at least 1,000 hours

Humidity resistance in a weather meter chamber
