LEED Certified | Non-Toxic Powder Coating | 25-Year Limited Warranty | 8 Colors

Forte

CLEARLY TOUGH & SECURE

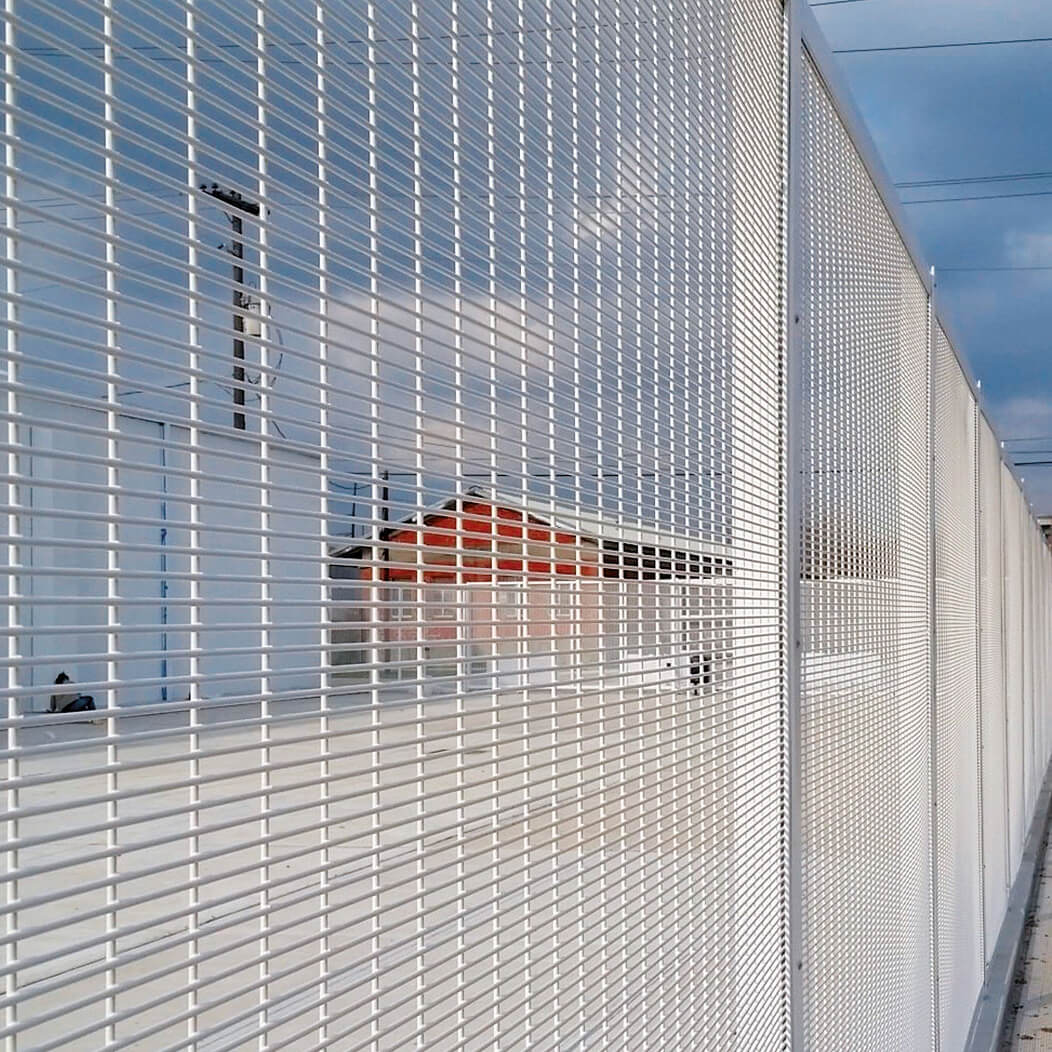

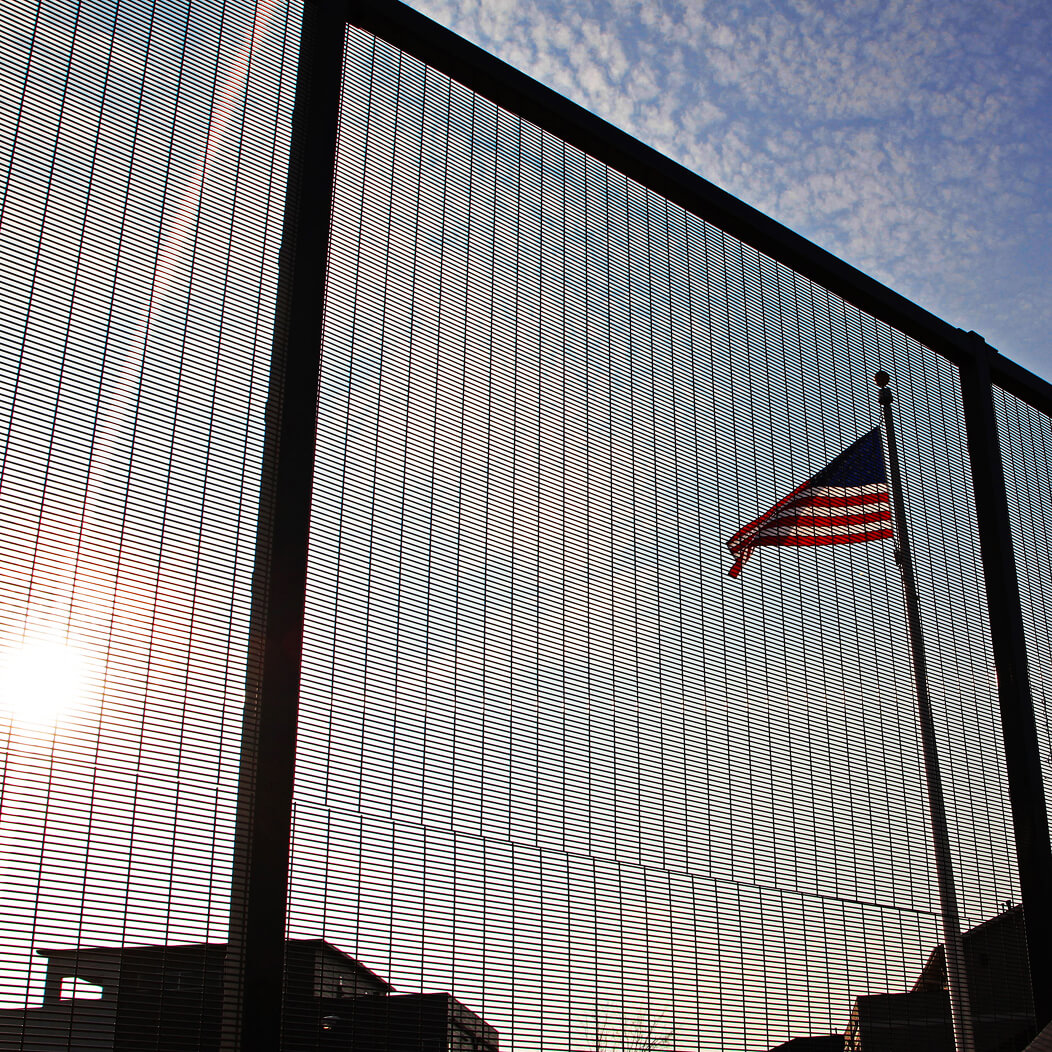

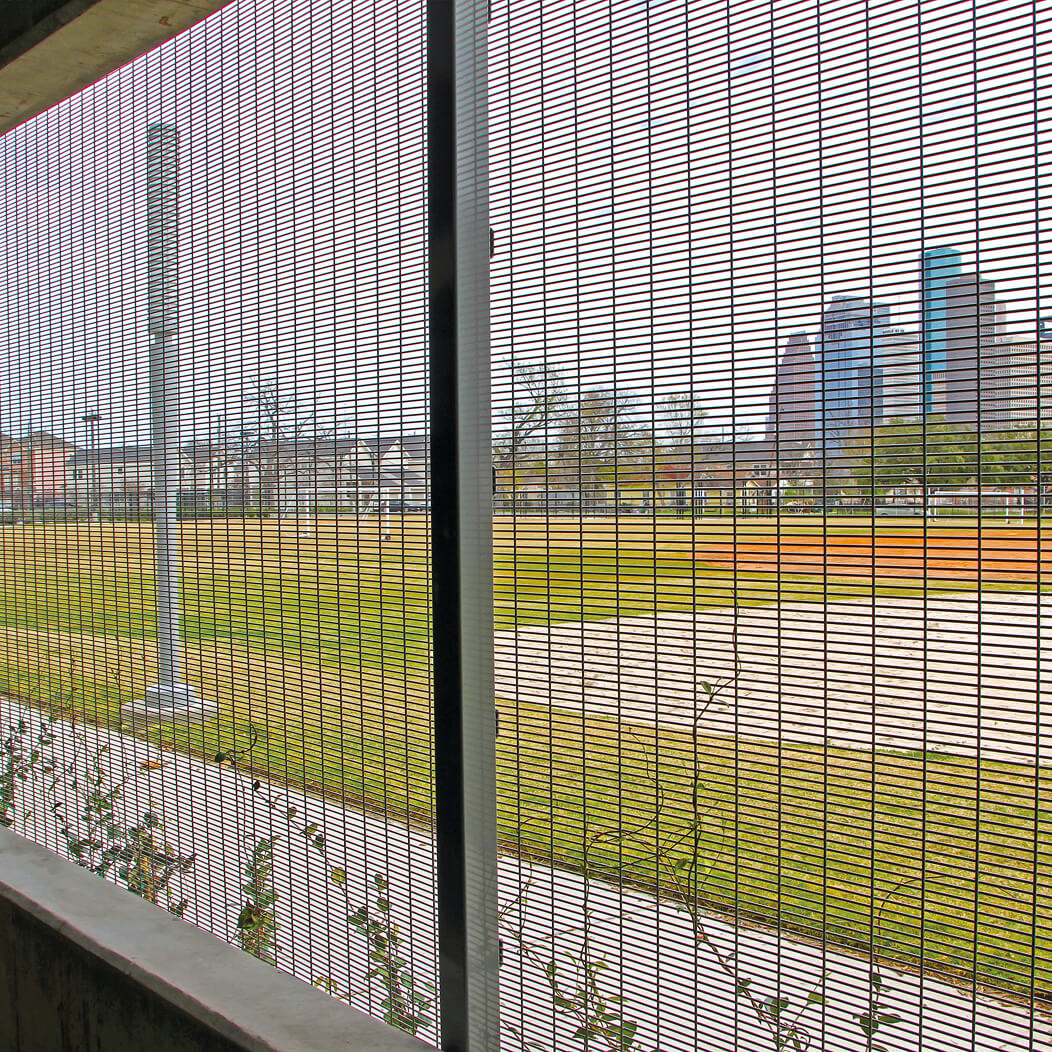

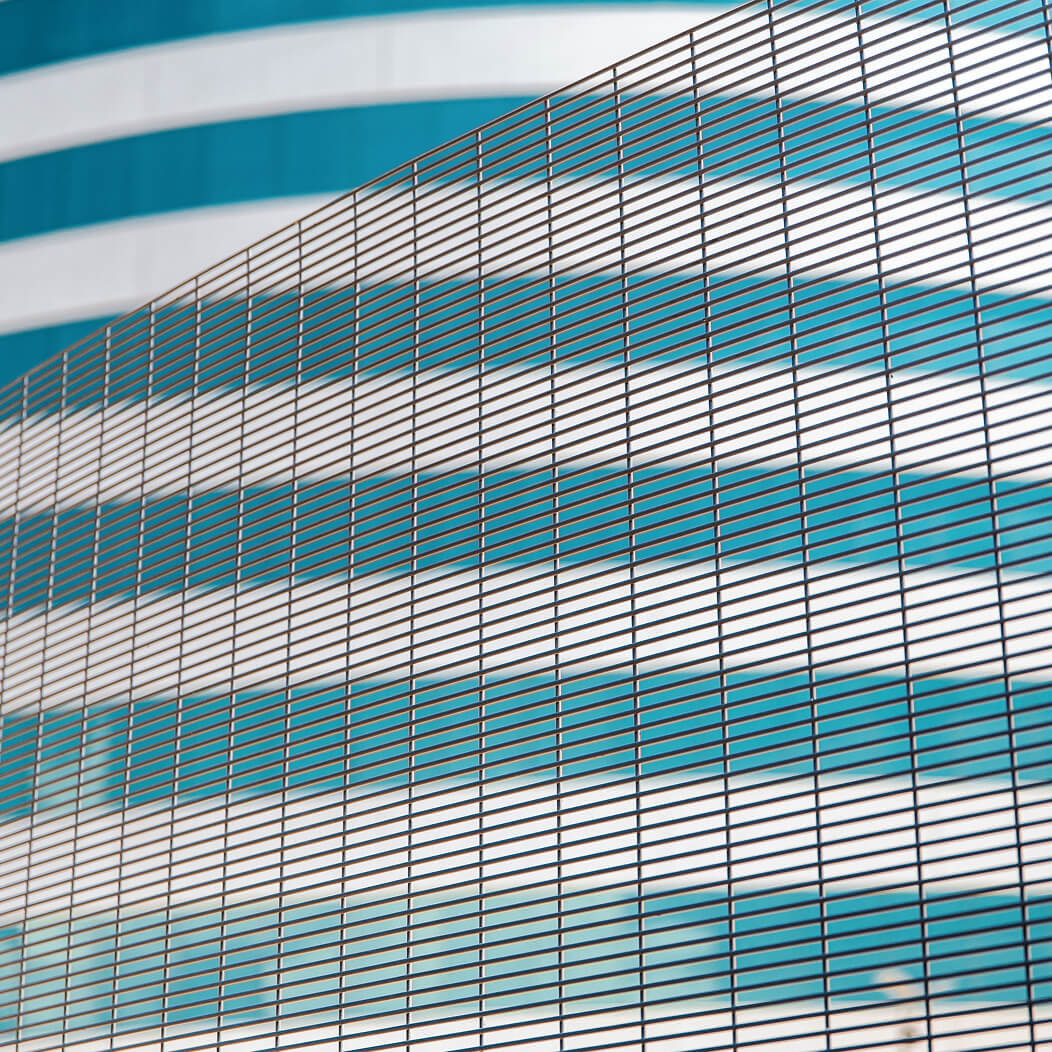

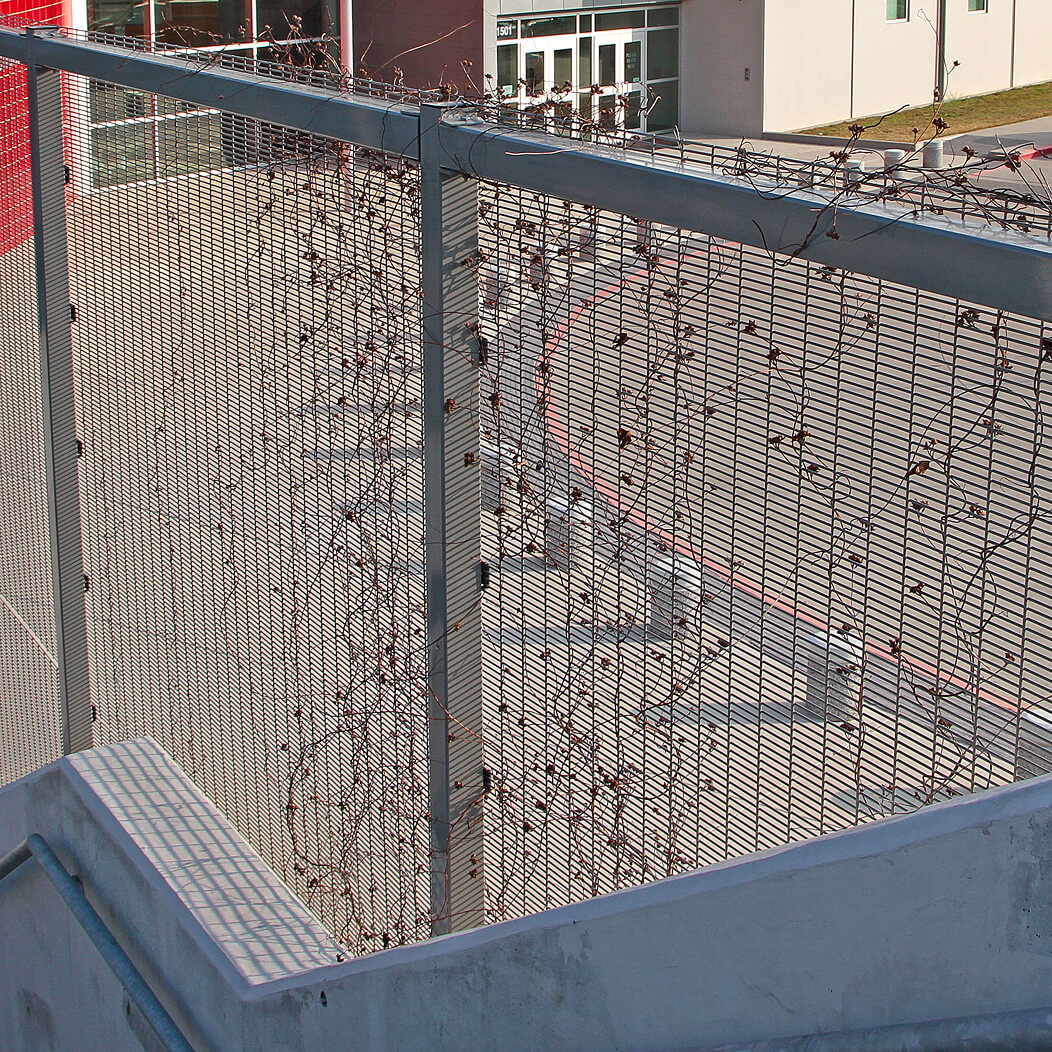

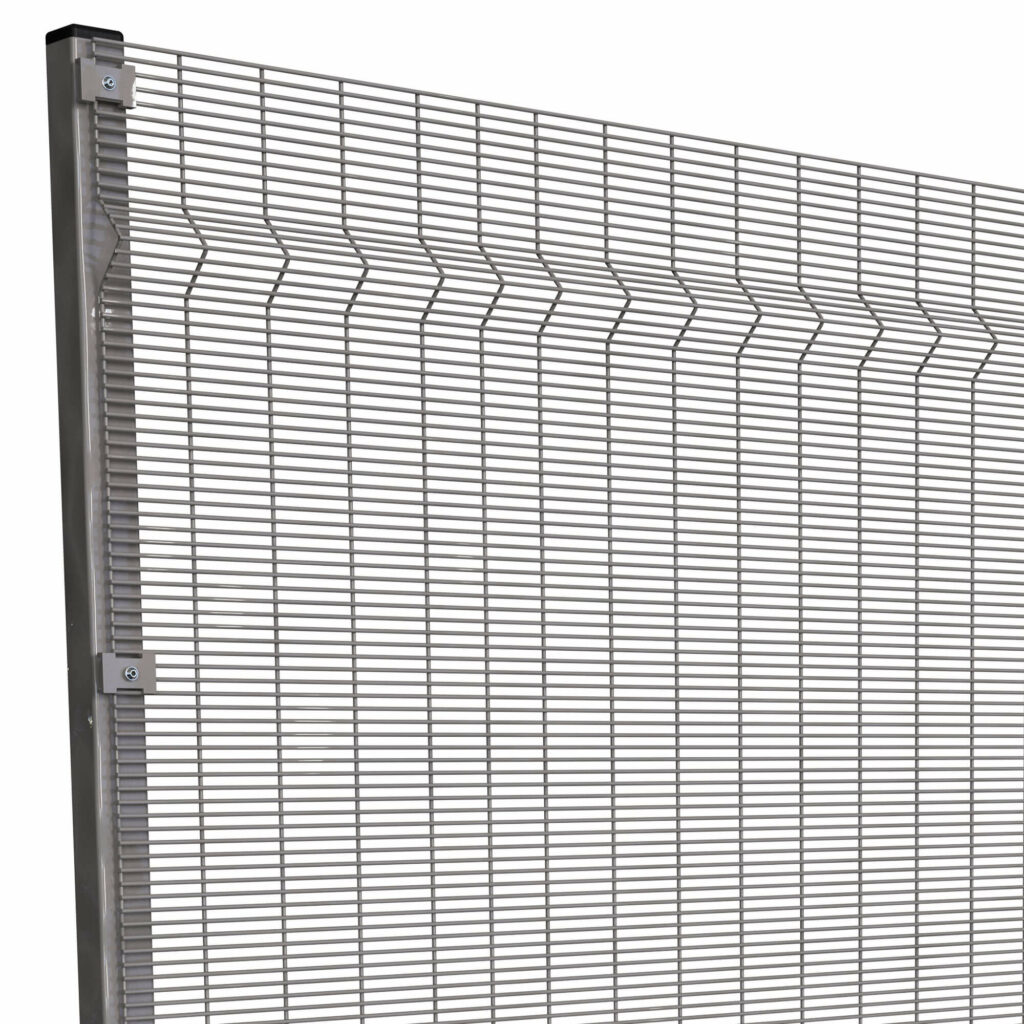

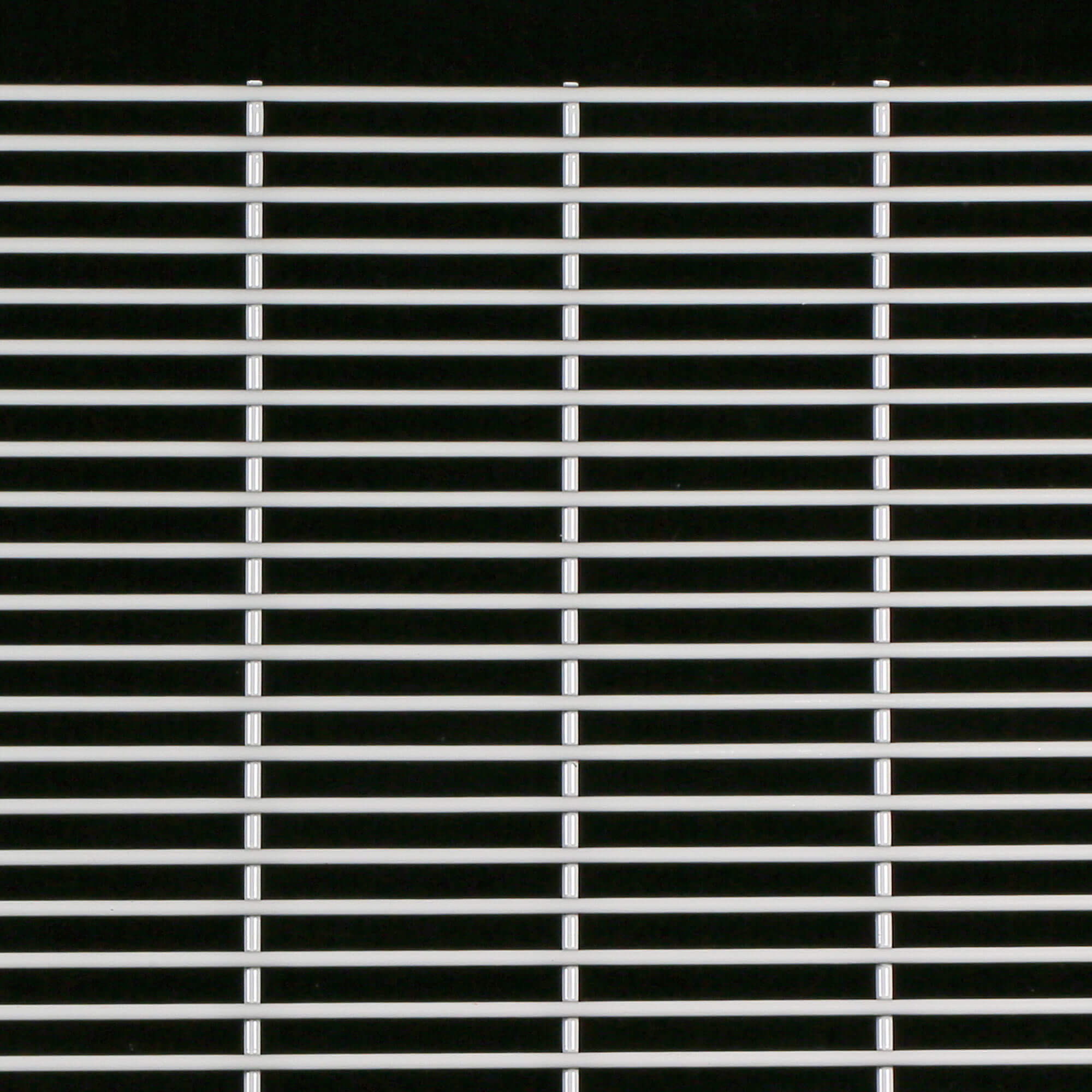

Forte delivers maximum security with a clear view, making it ideal for securing everything from critical assets to industrial complexes to stadiums and transportation facilities. Steel-strong construction and the tight grid design (½” x 3”) make Forte almost impossible to climb, cut or penetrate, giving would-be intruders every reason to go elsewhere. Say goodbye to picket and rail, chain link and other types of fencing and barriers. Count on Forte’s maintenance-free, high-security perimeter fortification to deliver the highest level of see-through security.

AVAILABLE IN:

SPECS & DOWNLOADS | BROCHURE

❱ INSTALLATION VIDEO

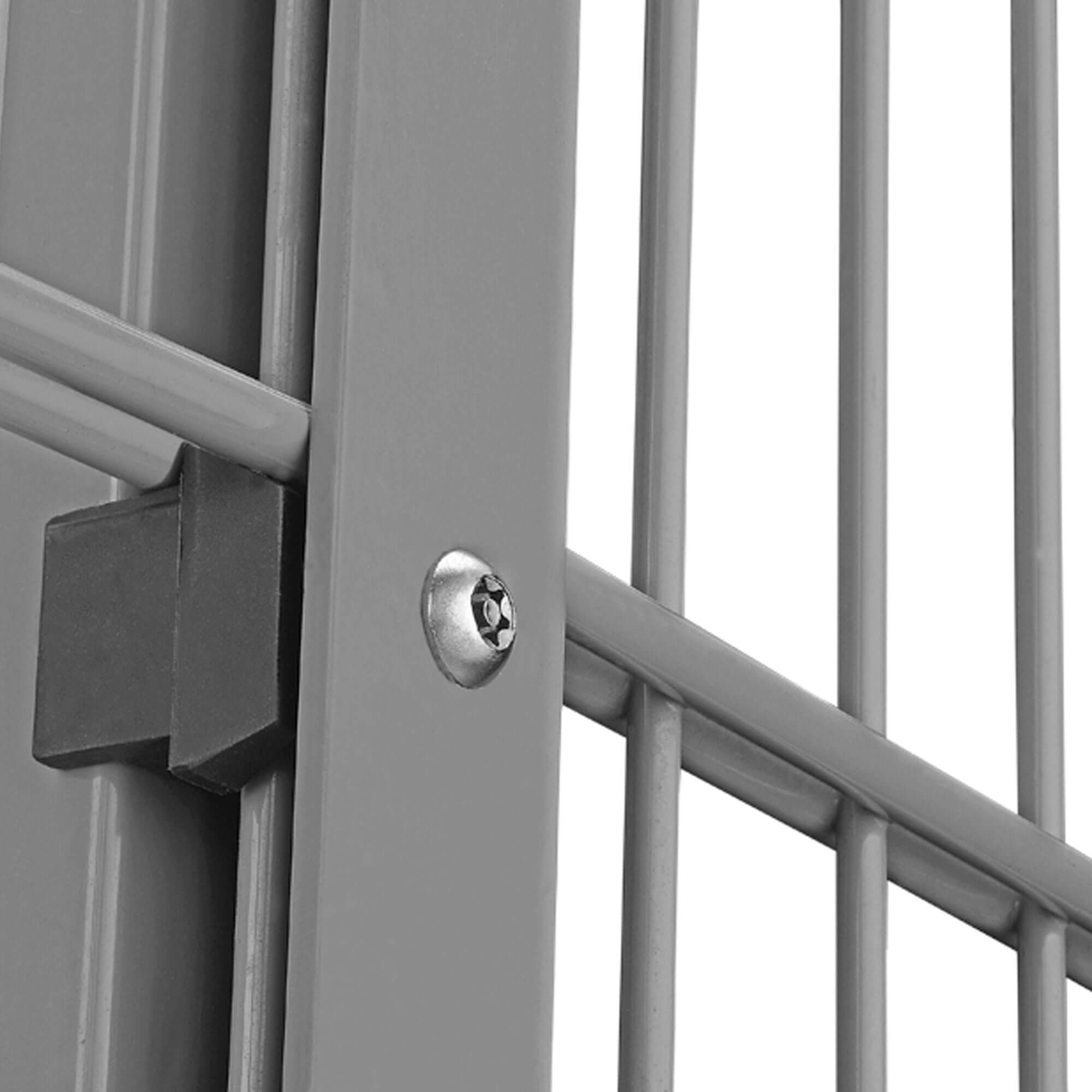

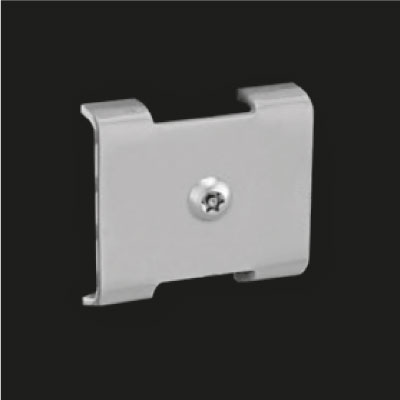

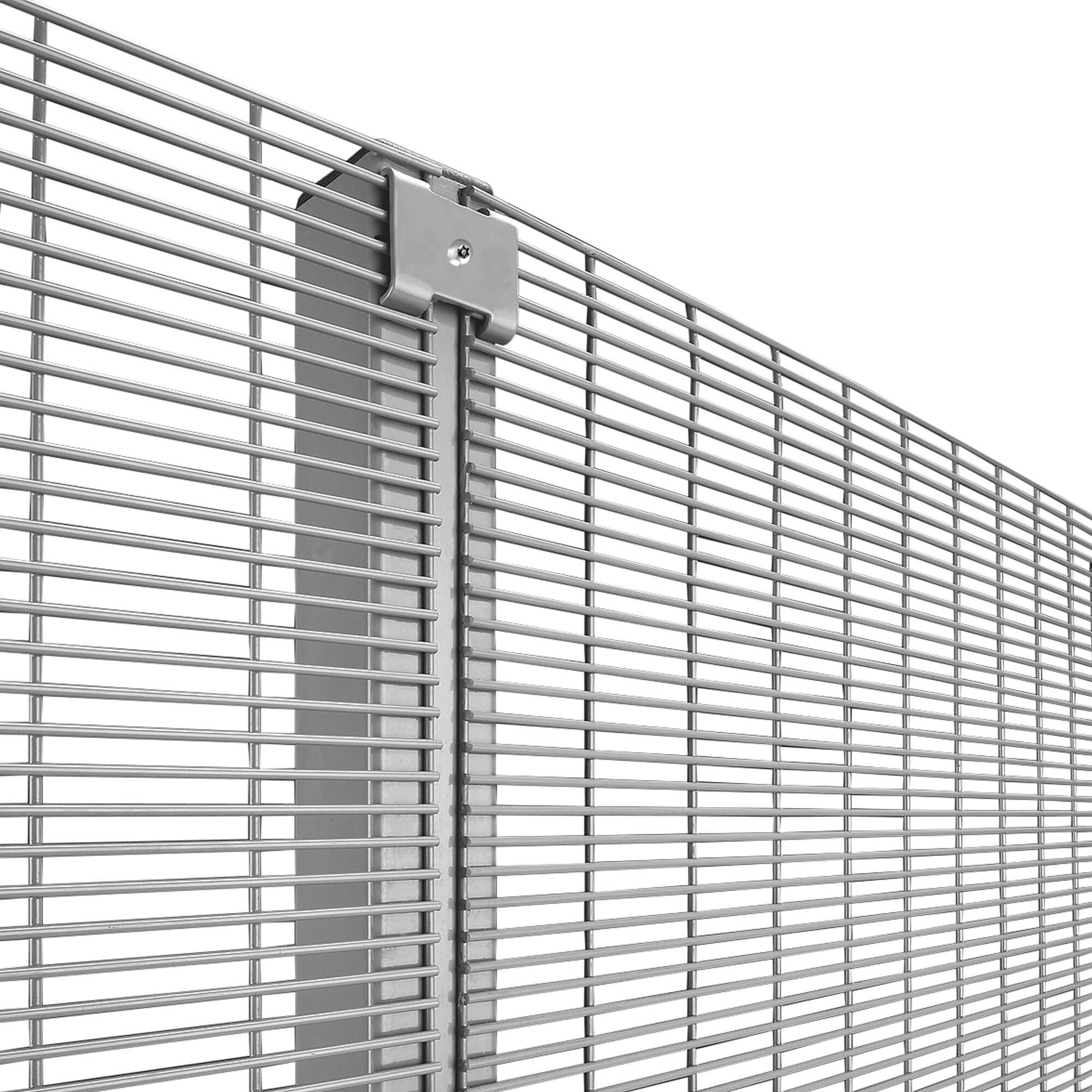

UNIVERSAL BRACKET

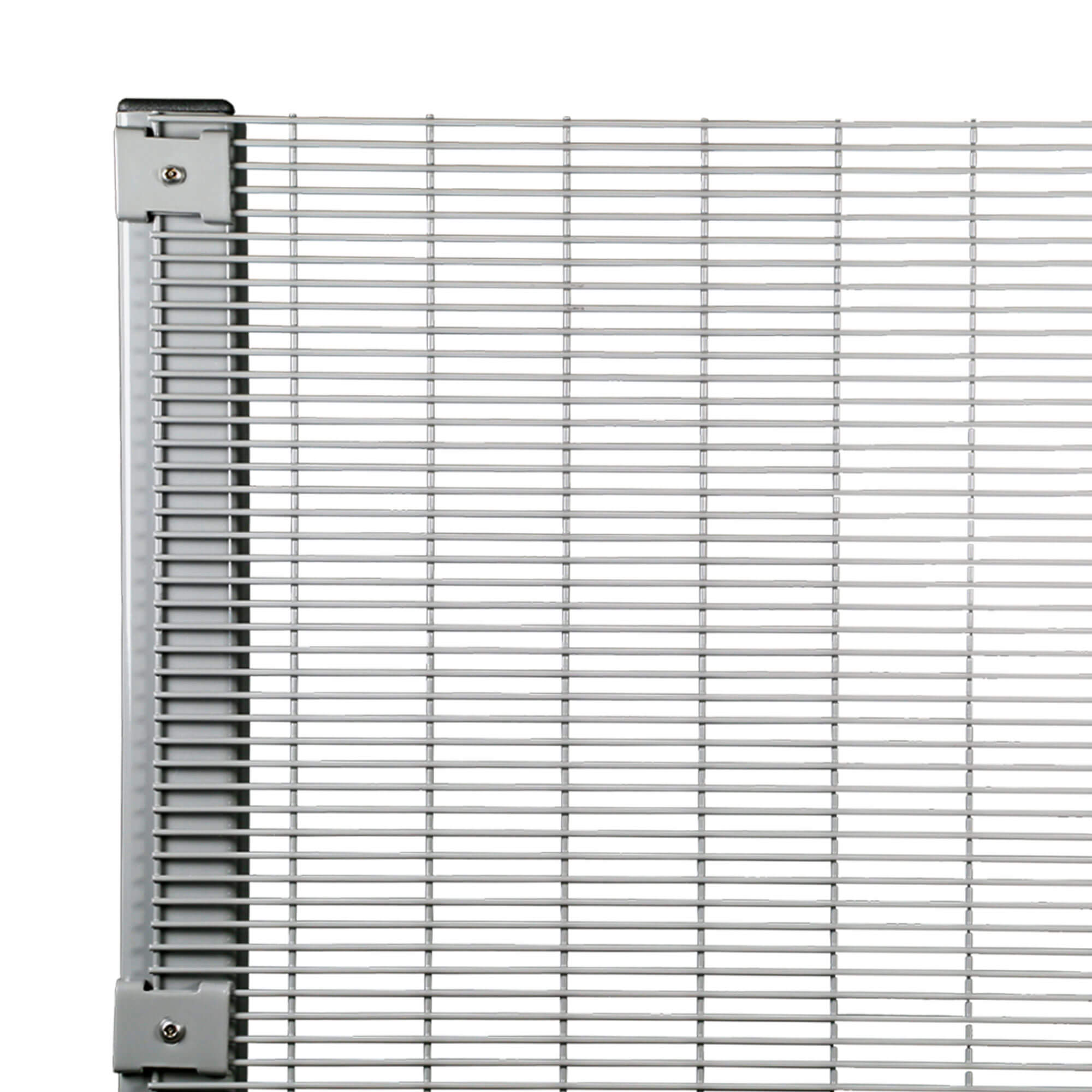

PANEL

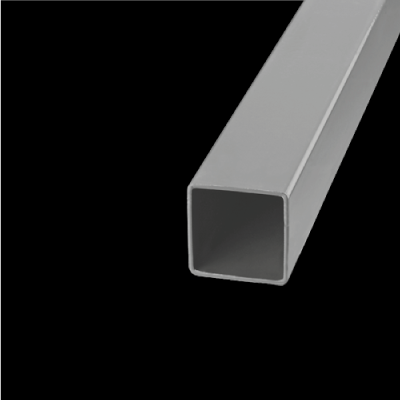

POST

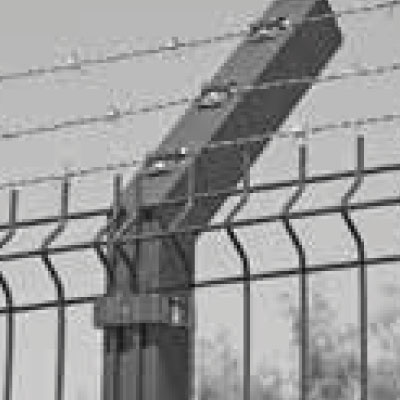

45 ANGLED EXTENSION

Crossbar system is recommended for Flat Panels. Two cross bars per panel are the minimum required, however three cross bars are recommended (top, middle, bottom). Post available in multiple sizes and lengths. Black post cap included. Self-tapping screw not included with bracket. V, T or 45-degree extensions available welded to post or add-on. Wire dimensions are center to center.

SPECS, DOWNLOADS AND CERTIFICATIONS

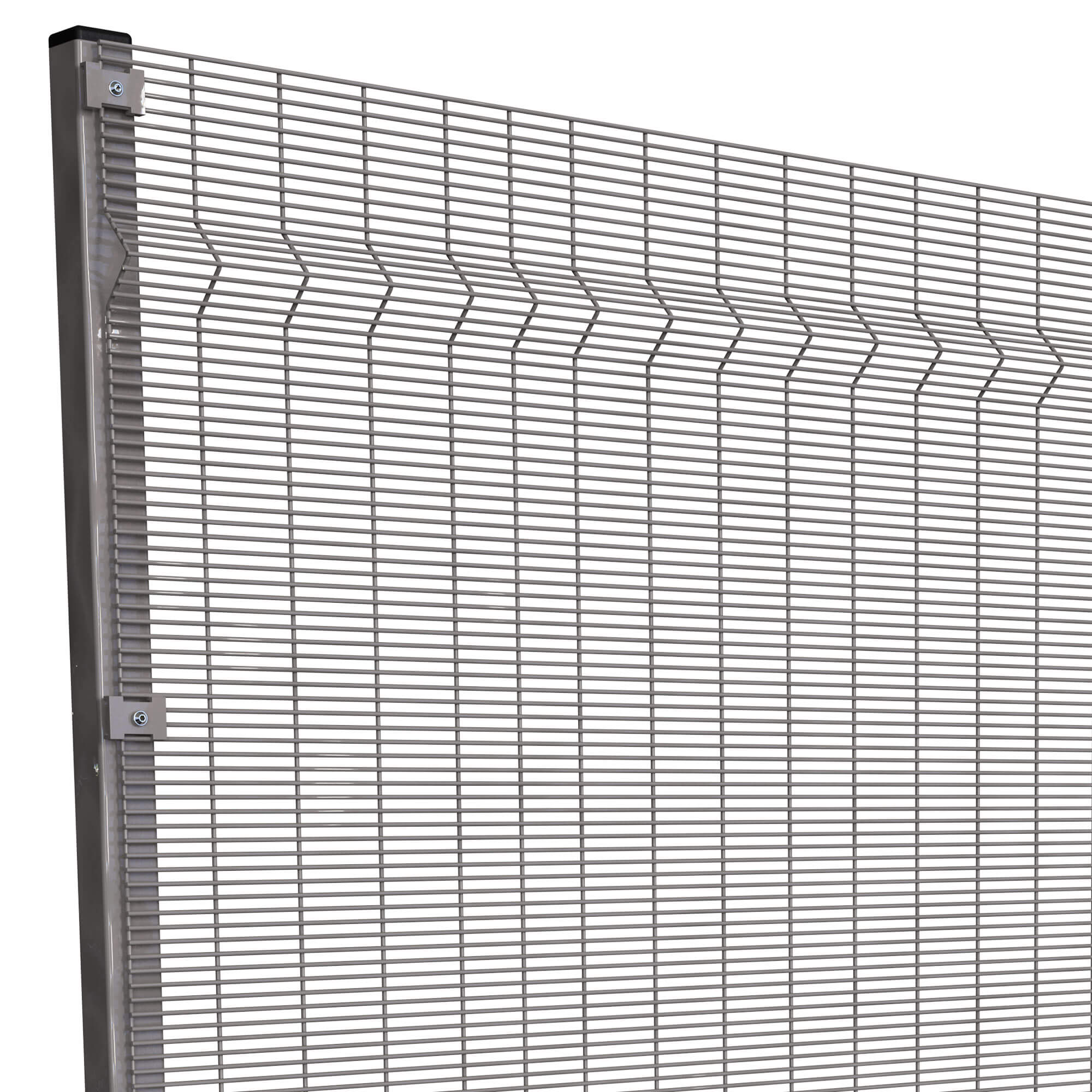

FORTE V-BRACE

Design	Height	Length	Gauge	Opening
WITH V-BRACE	76 7/8”	99 1/8”	8	1/2 x 3”
WITH V-BRACE	96”	99 1/8”	8	1/2 x 3”

FORTE MAX

Design	Height	Length	Gauge	Opening
FLAT	78 3/4”	99 1/8”	8	1/2 x 3”
FLAT	98 5/8”	99 1/8”	8	1/2 x 3”
FLAT	118 3/8”	99 1/8”	8	1/2 x 3”
FLAT	141 3/4”	99 1/8”	8	1/2 x 3”

WIRE TENSILE STRENGTH	OPENING
70,000 - 90,000 PSI	1/2 x 3”

DRAWINGS

MAINTENANCE GUIDE

WARRANTY

Certifications

Designmaster Fence components meet or exceed the requirements and tolerances of applicable ASTM standards to ensure industry compliance. Click through to learn more about each certification.

Specification for Carbon-Steel Wire

Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process

Standard Practice for Operating Salt Spray (Fog) Apparatus

Standard Test Methods for Mandrel Bend Test of Attached Organic Coatings

Standard Test Method for Evaluation of Painted or Coated Specimens Subjected to Corrosive Environments

Standard Practice for Calculation of Color Tolerances and Color Differences from Instrumentally Measured Color Coordinates

Standard Test Method for Resistance of Organic Coatings to the Effects of Rapid Deformation (Impact)

Standard Test Methods for Rating Adhesion by Tape Test

Standard Specification for Welded Wire Mesh Fence Fabric (Metallic-Coated or Polymer Coated) with Variable Mesh Patterns or Meshes greater than 6 in.

Exposure to ultraviolet light for at least 1,000 hours

Humidity resistance in a weather meter chamber
