FORTE

SPECIFICATIONS

FORTE Panels

FORTE Panels & Posts

Panel

Post

Posts are available in multiple sizes and lengths.

Available with angled extension.

Please consult one of our Distributors for additional details.

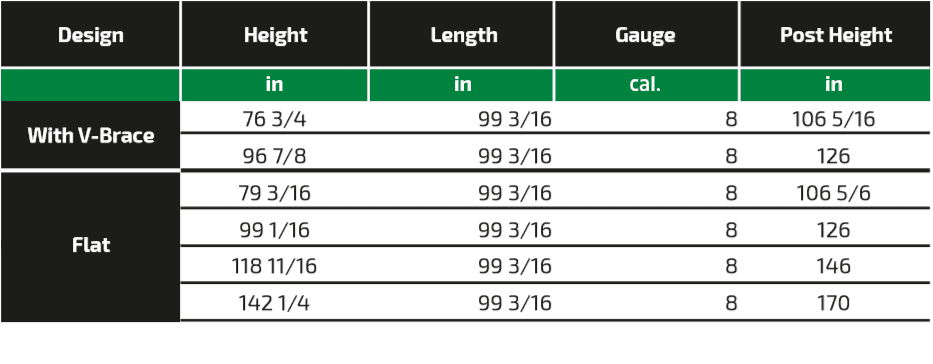

FORTE Drawings & Specifications

V-braced Panels

PANEL
BIM/IFC
DWG
PDF
SPECIFICATIONS
76"
98"

Flat Panels

PANEL
BIM
DWG
PDF
SPECIFICATIONS
79"
99"

Forte Max

PANEL
BIM
DWG
PDF
SPECIFICATIONS
118"
142"

FORTE
BROCHURE
MAINTENANCE
GUIDE

WARRANTY



Designmaster Fence Components Meet or Exceed the Requirements and Tolerances of Applicable ASTM’s, including, but not limited to, the following:

ASTM A1064Specification for Carbon-Steel Wire
ASTM A641Specification for Zinc–Coated (Galvanized) Carbon Steel Wire
ASTM A653Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
ASTM B117 Standard Practice for Operating Salt Spray (Fog) Apparatus
ASTM D522Standard Test Methods for Mandrel Bend Test of Attached Organic Coatings
ASTM D1654Standard Test Method for Evaluation of Painted or Coated Specimens Subjected to Corrosive Environments
ASTM D2244Standard Practice for Calculation of Color Tolerances and Color Differences from Instrumentally Measured Color Coordinates
ASTM D2794Standard Test Method for Resistance of Organic Coatings to the Effects of Rapid Deformation (Impact)
ASTM D3359Standard Test Methods for Rating Adhesion by Tape Test
ASTM F2919Standard Specification for Welded Wire Mesh Fence Fabric (Metallic-Coated or Polymer Coated) with Variable Mesh Patterns or Meshes greater than 6 in.
ASTM 1499Exposure to ultraviolet light for at least 1,000 hours
ASTM D2247Humidity resistance in a weather meter chamber
Forte
Features & Benefits Video
Forte
Installation Video

FORTE Installation Components

Universal Bracket

Post

Clamp

45° Angled Extension

Steel Brackets attach to posts using a #14 x 1 ½” self-tapping screw (Stainless Steel is recommended). This allows the brackets to be installed anywhere on the Post. Forte Panels may also be used with Classic Posts. This is especially useful if the project has any uneven grade. Post foundation varies according to building codes.

FORTE Composition

25-year limited warranty on all components | Meets ASTM-510


FORTE Colors / RAL Codes



Download Designmaster ASTM Certificate of Quality

Download Designmaster Forte CSI MasterFormat


The Forte Diference

STEEL FENCING

Superior strength for the toughest challenges

DURABLE POWDER-COATING

Long-term, care-free maintenance

EIGHT (8) STANDARD COLORS
SUPERIOR ANTI-CLIMB / CUT / PENETRATION FEATURES
ADAPTABLE TO VARYING LEVELS AND SLOPES
CHILD/PET-SAFE
GATES BUILT TO SPEC
CAPACITY TO MEET AGGRESSIVE DELIVERY SCHEDULES

Anywhere in the US and Canada

25-YEAR LIMITED WARRANTY

All products & components

LEED CREDITS AVAILABLE

100% NON-TOXIC POWDER-COATED FINISH

ECO-FRIENDLY
Recycled and recyclable
100% free of volatile organic compounds
100% free of Triglycidyl Isocyanurate
TEST-APPROVED
Miami-Dade County Approved – HVHZ (High Velocity,
Hurricane Zone)
Accelerated UV Weather Test G154-04
Corrosion Resistance – 1,000 hours of exposure
COMPLIES WITH ASTM-510

Forte Applications

Critical Infrastructure

Solar Farms; Data Centers; Water, Electrical & Gas Utilities

Chemical & Industrial Plants
Military Bases
Federal, State & Municipal Buildings
Transportation

Airports, Railways

Correctional Facilities
Embassies
Storage Facilities
Places of Worship
Warehouses
Distribution Facilities
