CLASSIC

CLEARLY BUILT FOR TIMELESS
BEAUTY & STRENGTH



Security Rating:   MEDIUM

CLEAR, see-through design
TIMELESS, classic beauty
STRENGTH for mid to high-level security


LEED Certified    |    Non-Toxic Powder Coating    |    25-Year Limited Warranty    |    8 Colors



When beauty factors into perimeter security, Classic’s stately elegance is an incomparable choice.

Difficult to climb or penetrate, made to last and competitively priced, Classic’s v-shaped braces along the length of each steel panel add lateral strength, and its adaptability to elevation and directional changes (120° swing) make this fence ideal for nearly any application.

Classic

Clear, Strong & Beautiful

Classic is the ultimate choice in versatility, making it the “go anywhere… go everywhere” fencing solution. It’s built steel strong, which makes it tough to cut, climb or penetrate, and yet it’s incredibly attractive.

The perfect alternative to chain link, Classic provides far greater security and aesthetics. It’s also an exceptional choice in lieu of wrought iron, with a much lower investment and virtually no maintenance. It needs no finials, balls, caps or other add-ons. It’s simply perfect the way it is.

Classic Security Solutions


Public Works/Public Spaces
Businesses & Corporations
Schools & Universities
Amusement Parks
Sports Complexes
Botanical Gardens & Zoos
Parks, Playgrounds & Pools
Daycare Centers
Hotels & Apartment Complexes
Transportation
Communities
Residential Property
Places of Worship
Warehouses
Distribution Facilities

CLEARLY DIFFERENT.

STEEL FENCING

Superior strength for the toughest challenges

DURABLE POWDER-COATING

Long-term, care-free maintenance

EIGHT (8) STANDARD COLORS
SUPERIOR ANTI-CLIMB / CUT / PENETRATION FEATURES
ADAPTABLE TO VARYING LEVELS AND SLOPES
CHILD/PET-SAFE
GATES BUILT TO SPEC
CAPACITY TO MEET AGGRESSIVE DELIVERY SCHEDULES

Anywhere in the US and Canada

CLEARLY BETTER.

25-YEAR LIMITED WARRANTY

All products & components

LEED CERTIFIED

MR 4.1 and MR 4.2 credits

100% NON-TOXIC POWDER-COATED FINISH

ECO-FRIENDLY
Recycled and recyclable
100% free of volatile organic compounds
100% free of Triglycidyl Isocyanurate

TEST-APPROVED
Miami-Dade County Approved – HVHZ (High Velocity,
Hurricane Zone)
Accelerated UV Weather Test G154-04
Corrosion Resistance – 1,000 hours of exposure
COMPLIES WITH ASTM-510

View the CLASSIC
FEATURES & BENEFITS VIDEO

CLASSIC Panels & Posts

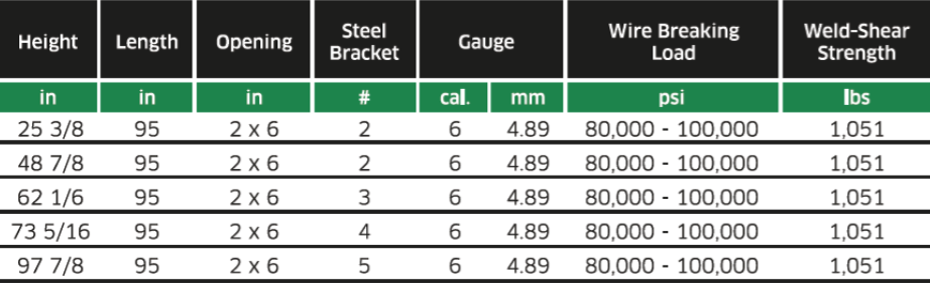

CLASSIC Panel Options

Panel

Post

Posts are available in multiple sizes and lengths.

Available with angled extension.

Please consult one of our Distributors for additional details.

CLASSIC Installation Components

Standard Bracket

Universal
Bracket

Posts

Clamp

45° Angled Extension

Base Mount

(Not recommended for panels over 5’H)

Steel Brackets attach to posts using a #14 x 1 ½” self-tapping screw (Stainless Steel is recommended; obtain locally). This allows the brackets (hardware included) to be installed anywhere on the Post. 3” x 3” 11-gauge posts are always preferred for all panels. At your discretion, smaller size posts may be used for panels 5’ and under. However, it is strongly recommended to ONLY use 3” x 3” 11-gauge posts (at a minimum) for installations with panels taller than 5’. Please consult an engineer, architect or other expert to ensure you are using the correct size post. And, always check your local building codes.

CLASSIC Composition

25-year limited warranty on all components | Meets ASTM-510


CLASSIC Colors / RAL Codes


CLASSIC File Downloads



Documentation & Video



Classic Installation Video


CLASSIC Drawings & Specifications


PANELDWG FilePDF FILESPECIFICATIONS
2'
4'
5'
6'
8'


Designmaster Fence Components Meet or Exceed the Requirements and Tolerances of Applicable ASTM’s, including, but not limited to, the following:

  • ASTM A1064 - Specification for Carbon-Steel Wire
  • ASTM A641 - Specification for Zinc–Coated (Galvanized) Carbon Steel Wire
  • ASTM A653 - Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip Process
  • ASTM B117 - Standard Practice for Operating Salt Spray (Fog) Apparatus
  • ASTM D522 - Standard Test Methods for Mandrel Bend Test of Attached Organic Coatings
  • ASTM D1654 - Standard Test Method for Evaluation of Painted or Coated Specimens Subjected to Corrosive Environments
  • ASTM D2244 - Standard Practice for Calculation of Color Tolerances and Color Differences from Instrumentally Measured Color Coordinates
  • ASTM D2794 - Standard Test Method for Resistance of Organic Coatings to the Effects of Rapid Deformation (Impact)
  • ASTM D3359 - Standard Test Methods for Rating Adhesion by Tape Test
  • ASTM F2919 - Standard Specification for Welded Wire Mesh Fence Fabric (Metallic-Coated or Polymer Coated) with Variable Mesh Patterns or Meshes greater than 6 in.

NOTE: Before installing any fence, please consult the local building codes and follow all safety requirements
